※Printed Parts Guideline

The Voron Team has provided the following print guidelines for you to follow in order to have the best chance at success with your parts. There are often questions about substituting materials or changing printing standards, but we recommend you follow these.

Setting
Recommendation

3D Printing Process

Fused Deposition Modeling (FDM)

Material

ABS

Infill Type

Grid, Gyroid, Honeycomb, Triangle or Cubic

Layer Height

0.2mm

Wall Count

4

Extrusion Width

Forced 0.4mm

Solid Top/Bottom layers

5

※Download STL files

※FILE NAMING

By this time, you should have already downloaded our STL files from the Voron GitHub. You might have noticed that we use a unique naming convention for the files. Here's how to interpret them:

PRIMARY COLOR Example: z_joint_lower_x4.stl These files will have no special identifier at the start of the filename.


ACCENT COLOR Example: [a]_tensioner_left.stl We add “[a]” to the front of any STL file intended to be printed with accent color.


QUANTITY REQUIRED Example: [a]_z_belt_clip_lower_x4.stl If a file ends with “_x#”, it indicates the quantity of that part required to build the machine.


OPAQUE COLOR Example: [o]_stealthburner_LED_diffuser_mask.stl The “[o]” prefix indicates that the file should be printed using opaque filament.


TRANSLUCENT COLOR Example: [c]_stealthburner_LED_diffuser_cut_2.stl The “[c]” prefix indicates that the file should be printed using translucent filament.


ADDITIONAL NOTES

  • The suffix "by_SIBOOR" on some STL files indicates that these files differ from the original VORON design or the original MOD design and are specifically tailored for the SIBOOR KIT.

  • The prefix "[Two-color]" indicates that the STL file requires printing with two different colors of ABS filament.


※Change Log

The modification history of the STL files by SIBOOR since their release will be documented here.

2024/10/17

  • Skirt/【HDMI5_Display_Bracket_by_SIBOOR】 - Modification Adjusted the dimensions to avoid interference with the left and right skirt mesh.

  • Stealthburner/【Distal_end_of_drag_chain_bracket_by_SIBOOR】 - Modification Reversed the drag chain mounting position and modified the mounting hole locations, making it easier to remove and adjust, while also enhancing the appearance.

  • Z_Assembly/【z_stepper_rear】 - Modification Added a wiring groove for the fume pack to ensure a tidier and more aesthetically pleasing wiring.

  • Other/【Skirt_Fan_Adapter_PCB_Bracket】 - Added Facilitates skirt fan cable management and removal.

  • Other/【X_Carbon_Tube_Fixings_FLANGE_NUT】 - Added For fixing the X carbon tube, making assembly more convenient.

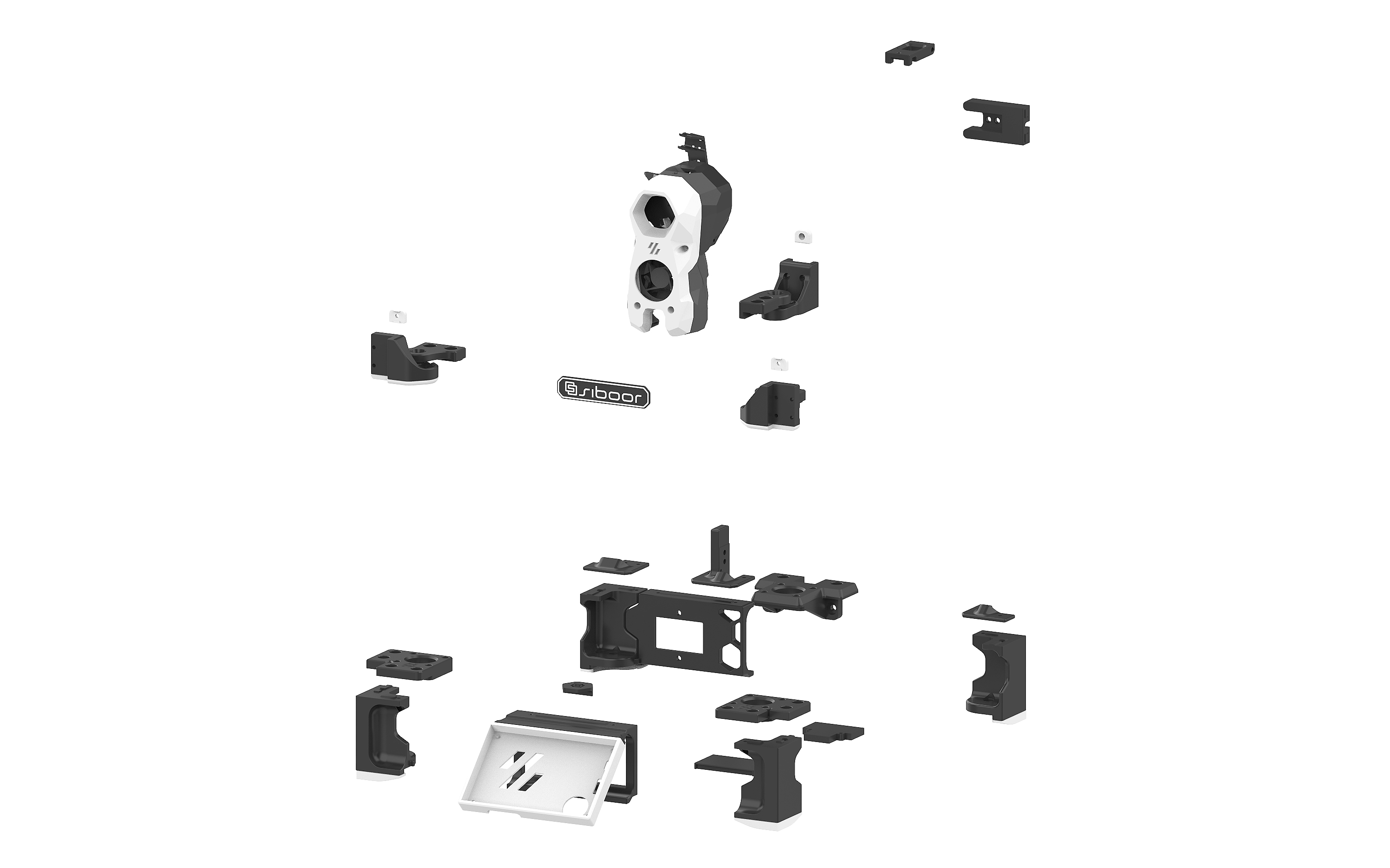

※Essential__Functional_Parts

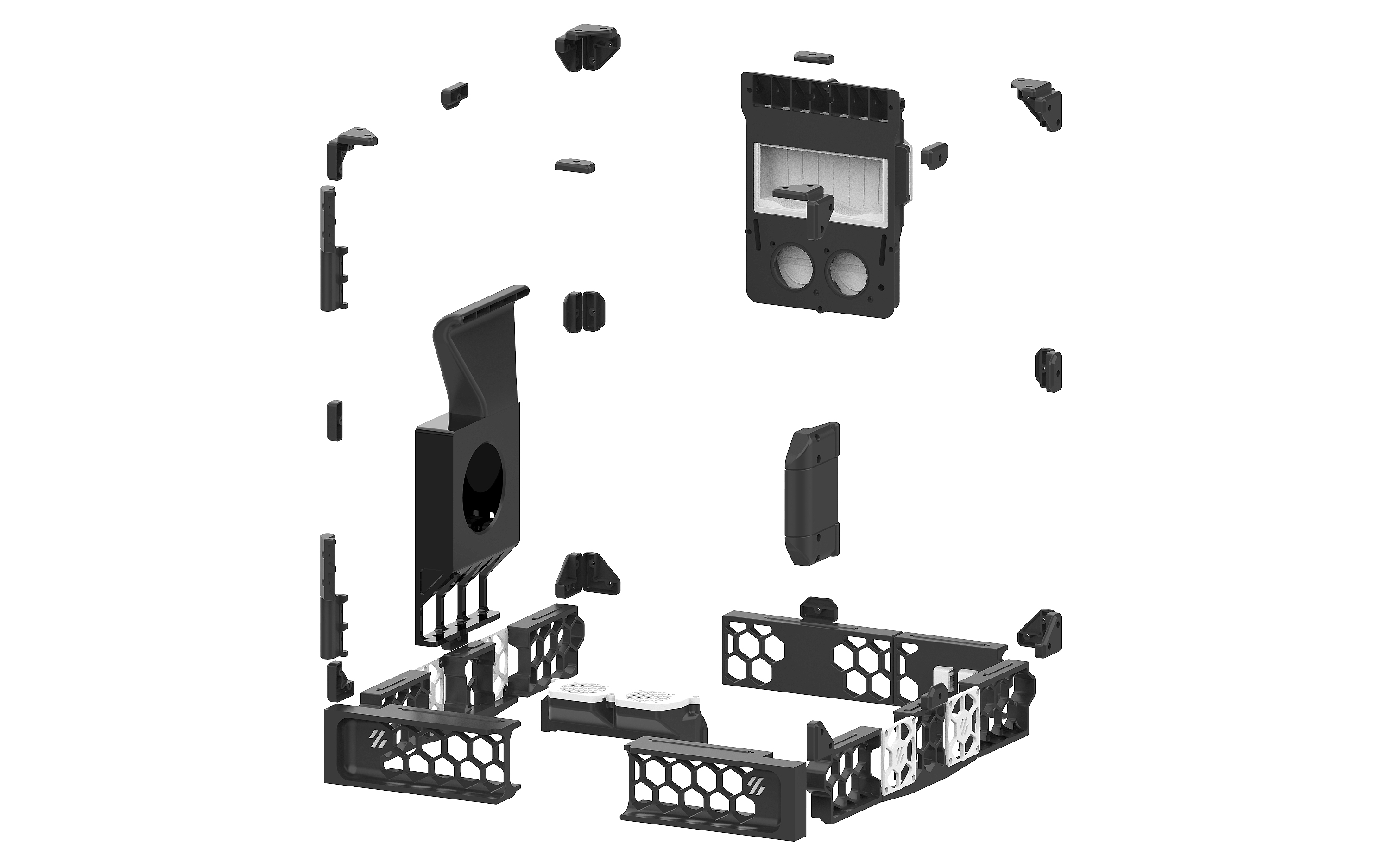

※Non-essential_Functional_Parts
