  1. ※E3-SW CONVERSION
  2. The Build
  3. Preparations

Printed Parts

PreviousPreparationsNextHeat Set Inserts

Last updated 7 months ago

The Voron Team has provided the following print guidelines for you to follow in order to have the best chance at success with your parts. There are often questions about substituting materials or changing printing standards, but we recommend you follow these.

Setting
Recommendation

3D Printing Process

Fused Deposition Modeling (FDM)

Material

ABS

Infill Type

Grid, Gyroid, Honeycomb, Triangle or Cubic

Layer Height

0.2mm

Wall Count

4

Extrusion Width

Forced 0.4mm

Solid Top/Bottom layers

5

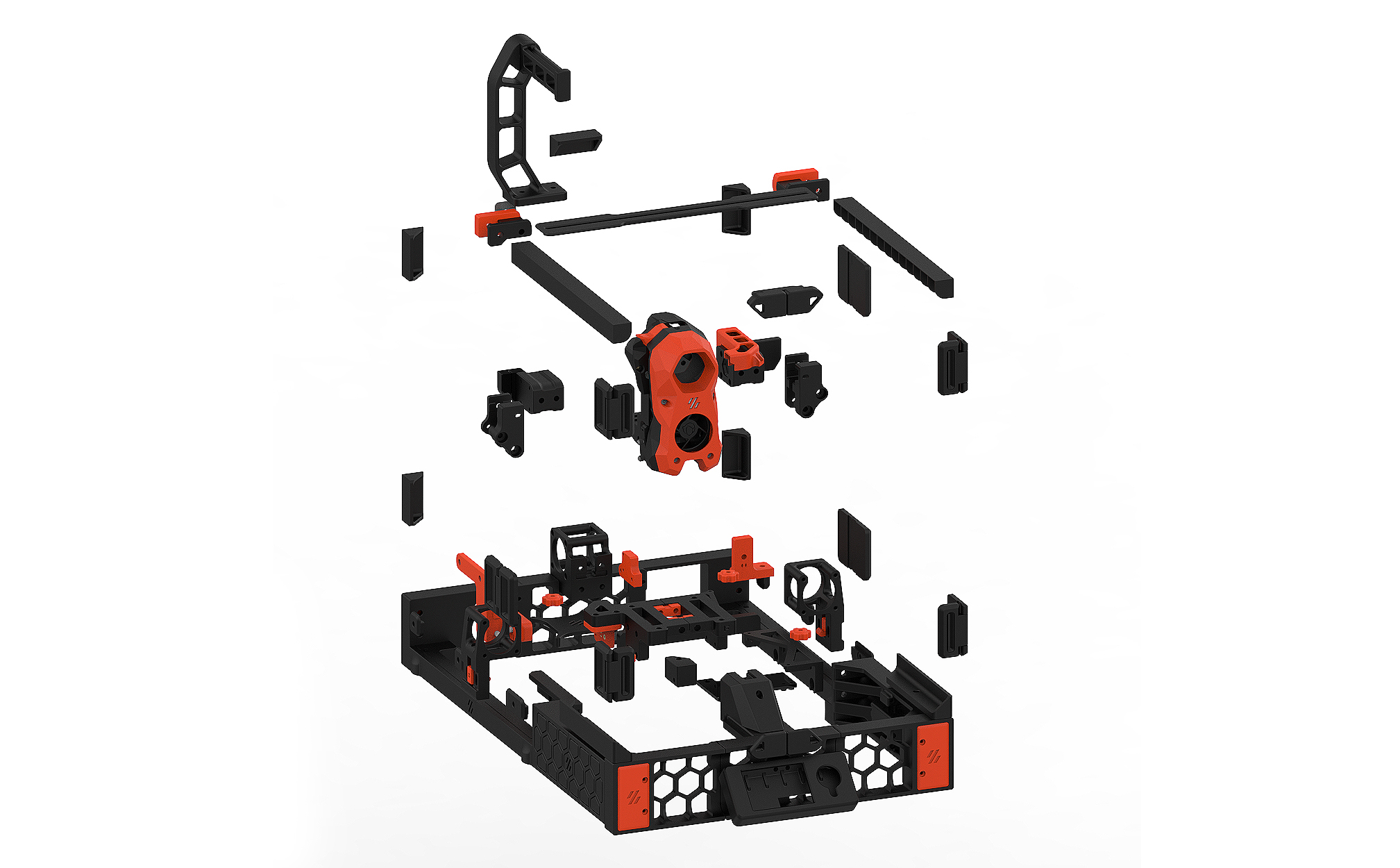

※打印件示意图

如果您购买的包含ABS印刷件的套件,那么应该包含下图中的打印件。

SIBOOR KIT的ABS印刷件使用的是

文件路径
预览图
STL 文件名
数量
颜色

Electronics

24 Buck 5V module fixing bracket(SIBOOR)

1

PRIMARY COLOR

Electronics

Klipper Expansion Board Bracket

1

PRIMARY COLOR

Electronics

PS_4040_mount_x2

2

PRIMARY COLOR

Electronics

PS_4040_Slide_Mount

1

PRIMARY COLOR

Electronics

RPi_bracket

1

PRIMARY COLOR
