②Assembly manual
Last updated
Last updated

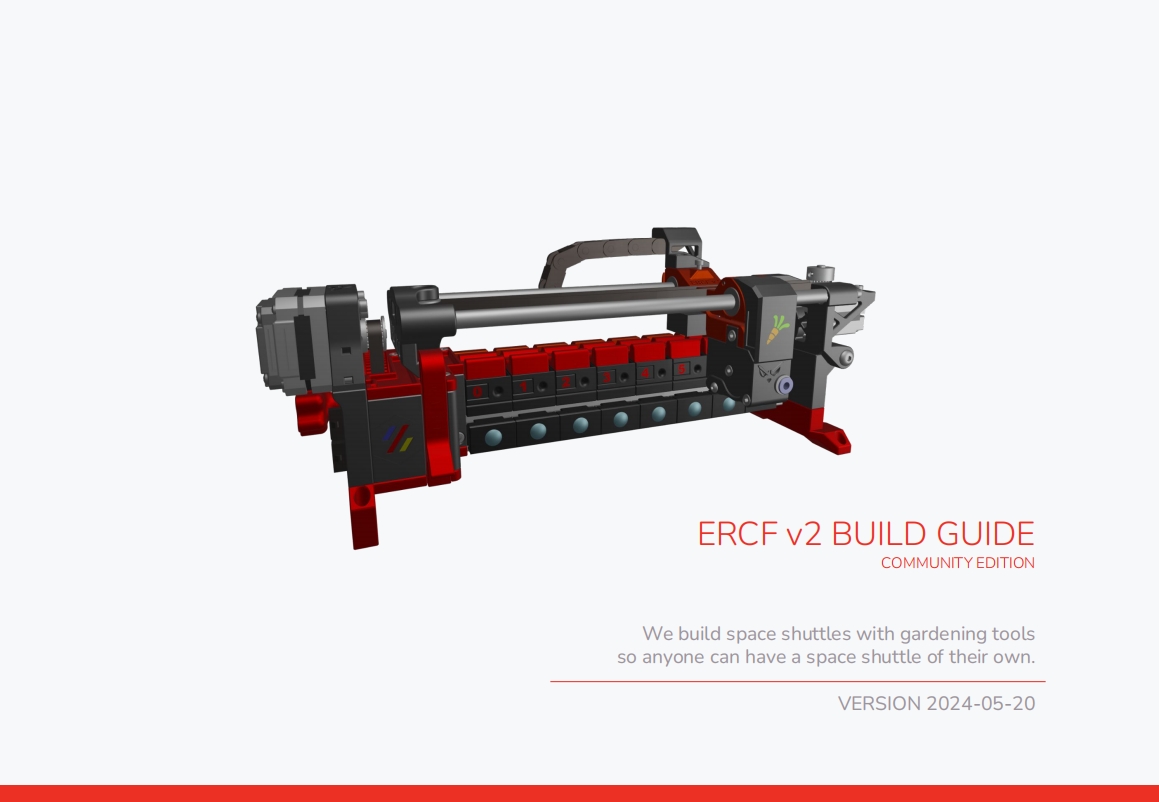

Building something as complex as an MMU is a challenging task, but the ERCFv2 project includes a very detailed and illustrated manual with step-by-step instructions. Click here to download.
Since some improved products are used in the SIBOOR kit, you will also need to read the following information carefully to ensure you can correctly install all steps.
Pages 17-22: Skip these pages.
Pages 37-39: The SIBOOR kit uses an 80T metal reduction gear.
Pages 44-47: Skip these pages.
Page 58: The BMG passive extruder gear in the SIBOOR kit uses metal bearings instead of plastic ones.
Page 60: In the SIBOOR kit, the MR85ZZ bearings are only installed on channels 2, 5, and 7.
Page 99: At this point, you should install the selector LED lights.
Page 110: If you're having trouble installing the GT2 20T idler, check whether you printed the STL file for the 10mm idler.
Since some improved products are used in the SIBOOR kit, you will also need to read the following information carefully to ensure you can correctly install all steps.

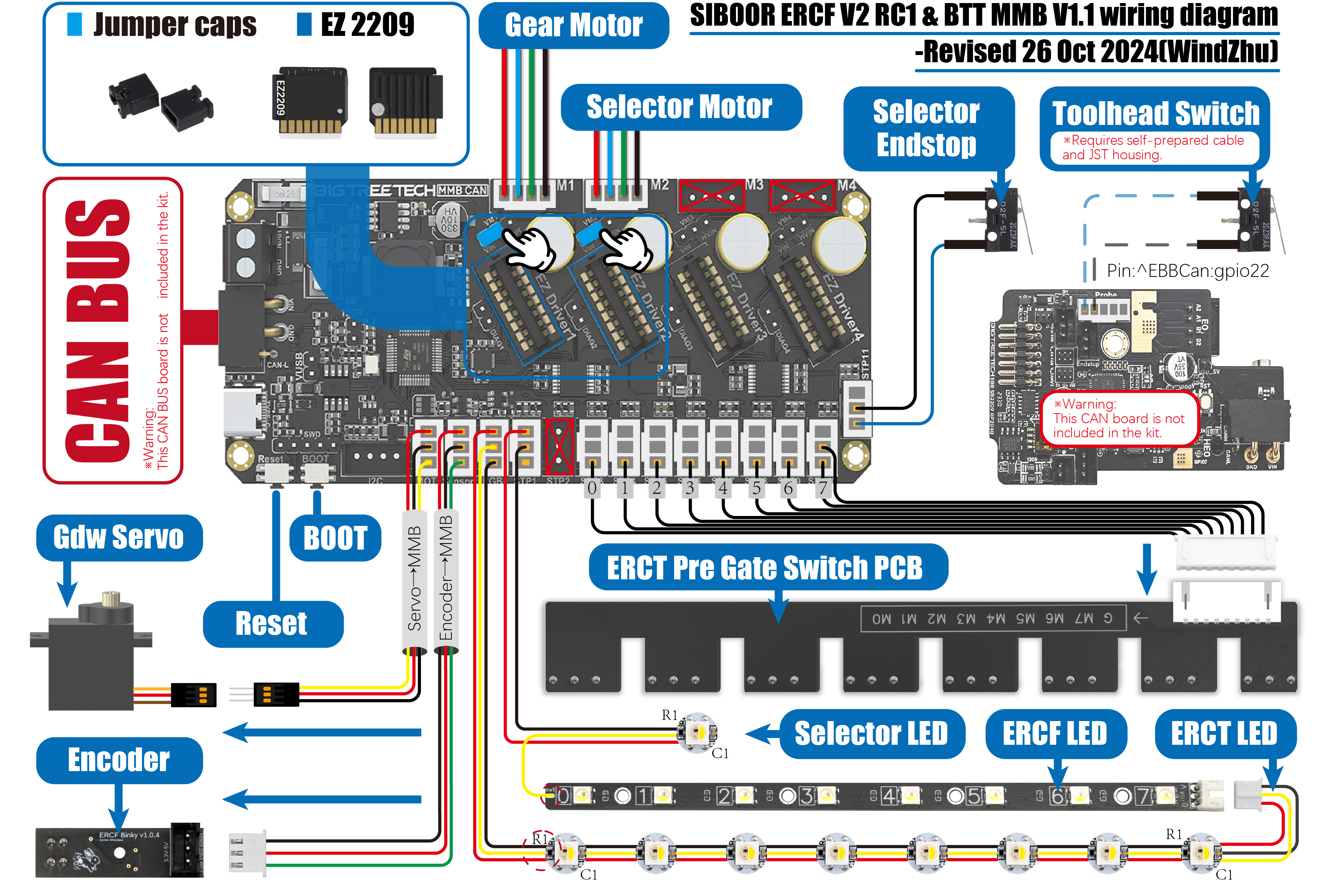

Page 10: The SIBOOR kit uses a PCB limit switch board, which enhances installation efficiency and stability.
The ERCF V2 team has invested significant effort into creating high-quality CAD models for the project, carefully organized into folders that match the documentation! It is highly recommended that you open the CAD and hide each folder, displaying one folder at a time during the build process.
以及工具头传感器安装
