# ①Print necessary parts

{% hint style="success" %}
**Announcement**

In accordance with the latest guidance from the ERCF V2 team, the SIBOOR ERCF V2 GitHub repository will only host STL files created or modified by SIBOOR. This approach ensures that all users can access the most up-to-date versions of the STL files directly from the official ERCF V2 platform.

To assist our users in identifying the STL files they need, we’ve prepared a concise guide and hope it will be helpful!

Thank you for your understanding and support!\
**SIBOOR Team**
{% endhint %}

## ※Printed Parts Guideline

The Voron Team has provided the following print guidelines for you to follow in order to have the best chance at success with your parts. There are often questions about substituting materials or changing printing standards, but we recommend you follow these.

| Setting                 | Recommendation                             |
| ----------------------- | ------------------------------------------ |
| 3D Printing Process     | Fused Deposition Modeling (FDM)            |
| Material                | ABS                                        |
| Infill Type             | Grid, Gyroid, Honeycomb, Triangle or Cubic |
| Layer Height            | 0.2mm                                      |
| Wall Count              | 4                                          |
| Extrusion Width         | Forced 0.4mm                               |
| Solid Top/Bottom layers | 5                                          |

### ※FILE NAMING

{% hint style="success" %}
**Example:** <mark style="color:green;">`Gear_Box_Back`</mark>\
These files will have no special identifier at the start of the filename.

***

**ACCENT COLOR**\
**Example:**<mark style="color:green;">`[a]_End_Bypass_Foot`</mark>\
We add "\[a]" to the front of any STL file intended to be printed with accent color.

***

**QUANTITY REQUIRED**\
**Example:** <mark style="color:green;">`End_Bypass Filament_Path_xN`</mark>\
If a file ends with "\_x#", it indicates the quantity of that part required for the machine. The value of "N" corresponds to the number of channels in your ERCF V2. Since SIBOOR only sells the 8-channel version, you can assume "N" to be 8 by default.

***

**OPAQUE COLOR**\
**Example:** <mark style="color:green;">`[o]_Encoder_Slotted_Wheel`</mark>\
The "\[o]" prefix indicates that the file should be printed using opaque filament.

***

**MULTI-COLOR**\
**Example:** <mark style="color:green;">`[mm]_Voron_Logo_Plate`</mark>\
The "\[mm]" prefix indicates that the file should be printed using multi-color filament.

***

**ADDITIONAL NOTES**\
The suffix "by\_SIBOOR" on some STL files indicates that these files differ from the original VORON design or the original MOD design and are specifically tailored for the SIBOOR K series.
{% endhint %}

### ※ERCF V2 Download STL files

{% embed url="<https://github.com/Enraged-Rabbit-Community/ERCF_v2/tree/master/Stls>" %}

{% tabs %}
{% tab title="Apron\_Leds" %}
~~<mark style="color:red;">`Images`</mark>~~

~~<mark style="color:red;">`Options`</mark>~~

~~<mark style="color:red;">`[c]_Cover_Lens_xN`</mark>~~

~~<mark style="color:red;">`Cover_Body_xN`</mark>~~

~~<mark style="color:red;">`Holder_Brim_Ears_xN`</mark>~~

~~<mark style="color:red;">`Holder_Strip_Leds_xN`</mark>~~

{% endtab %}

{% tab title="Filament\_Blocks" %}
~~<mark style="color:red;">📁\_Options\_See\_Doc</mark>~~&#x20;

<mark style="color:green;">📁Tag\_Plates</mark>     (Print only 0-7)

<mark style="color:green;">`[a]_Base_Trap_M3_xN`</mark>                             &#x20;

~~<mark style="color:red;">`[a]_Base_Trap_V-Shape_xN`</mark>~~&#x20;

<mark style="color:green;">`[a]_End_Bypass_Foot`</mark>

<mark style="color:green;">`[a]_Latch_xN`</mark>&#x20;

<mark style="color:green;">`[a]_Tophat_xN`</mark>&#x20;

<mark style="color:green;">`Base_xN`</mark>&#x20;

<mark style="color:green;">`End_Bypass Filament_Path_xN`</mark>
{% endtab %}

{% tab title="Gear\_Box" %} <mark style="color:green;">`[a]_Bearing_Spacer_x2`</mark>

<mark style="color:green;">`[a]_Gear_Box_Bottom_Panel`</mark>

<mark style="color:green;">`[a]_Gear_Box_Top_Panel`</mark>

<mark style="color:green;">`[a]_Knob`</mark>

<mark style="color:green;">`[a]_Logo_Plate`</mark>

<mark style="color:green;">`[a]_M4_80T_Wheel`</mark>

<mark style="color:green;">`[a]_Side_Latch_x2`</mark>

~~<mark style="color:red;">`[mm]_Voron_Logo_Plate`</mark>~~

<mark style="color:green;">`Gear_Box_Back`</mark>

<mark style="color:green;">`Gear_Box_Front`</mark>

~~<mark style="color:red;">`Motor_Arm_NEMA14`</mark>~~

~~<mark style="color:red;">`Motor_Arm_NEMA14_EASYBRD`</mark>~~

~~<mark style="color:red;">`Motor_Arm_NEMA17`</mark>~~

<mark style="color:green;">`Motor_Arm_NEMA17_EASYBRD`</mark>
{% endtab %}

{% tab title="Linear\_Axis" %} <mark style="color:green;">`[a]_Drag_Chain_Anchor_Bottom`</mark>

<mark style="color:green;">`[a]_Motor_Lock`</mark>

~~<mark style="color:red;">`Linear_Axis_Idler_Block`</mark>~~

<mark style="color:green;">`Linear_Axis_Selector_Motor_Support`</mark>
{% endtab %}

{% tab title="Selector" %}
~~<mark style="color:red;">`📁`</mark><mark style="color:red;">Encoder\_Flat\_Bearing\_Option</mark>~~

~~<mark style="color:red;">`📁`</mark><mark style="color:red;">Selector\_Door\_Multicolor\_Option</mark>~~

<mark style="color:green;">`[a]_Selector_Cart`</mark>

<mark style="color:green;">`[a]_Servo_Arm_MG90S`</mark>

~~<mark style="color:red;">`[a]_Servo_Arm_Savox`</mark>~~

<mark style="color:green;">`[o]_Encoder_Slotted_Wheel`</mark>

<mark style="color:green;">`Belt_Tensioner`</mark>

<mark style="color:green;">`Drag_Chain_Anchor`</mark>

<mark style="color:green;">`Encoder_Left`</mark>

<mark style="color:green;">`Encoder_Right`</mark>

<mark style="color:green;">`Selector_Door`</mark>

<mark style="color:green;">`Selector_Spring_Cap`</mark>

<mark style="color:green;">`Servo_Mount_MG90S`</mark>

~~<mark style="color:red;">`Servo_Mount_Savox`</mark>~~
{% endtab %}

{% tab title="Supports" %} <mark style="color:red;">`📁`</mark><mark style="color:green;">Adjustable\_Mount</mark>  （Print as needed）                            &#x20;

~~`📁`<mark style="color:red;">BTT\_MMB</mark>~~ <mark style="color:red;"></mark>                                             &#x20;

~~<mark style="color:red;">`📁`</mark><mark style="color:red;">EASY-BRD</mark>~~                                               &#x20;

~~<mark style="color:red;">`📁`</mark><mark style="color:red;">V1\_V2</mark>~~                                                       &#x20;
{% endtab %}

{% tab title="Tools" %}
~~<mark style="color:red;">`80T_Cog_Guide`</mark>~~                                            &#x20;

<mark style="color:green;">`Bearing_Install_Tool`</mark>                           &#x20;

<mark style="color:green;">`Calib_Test`</mark>                                                 &#x20;

<mark style="color:green;">`PTFE_Tool`</mark>                                                    &#x20;

~~<mark style="color:red;">`Pulley_Tool_NEMA14`</mark>~~                               &#x20;

<mark style="color:green;">`Pulley_Tool_NEMA17`</mark>                                &#x20;

<mark style="color:green;">`Slotted_Wheel_Push_Tool`</mark>                    &#x20;
{% endtab %}
{% endtabs %}

### ※By SIBOOR ERCF V2 STL

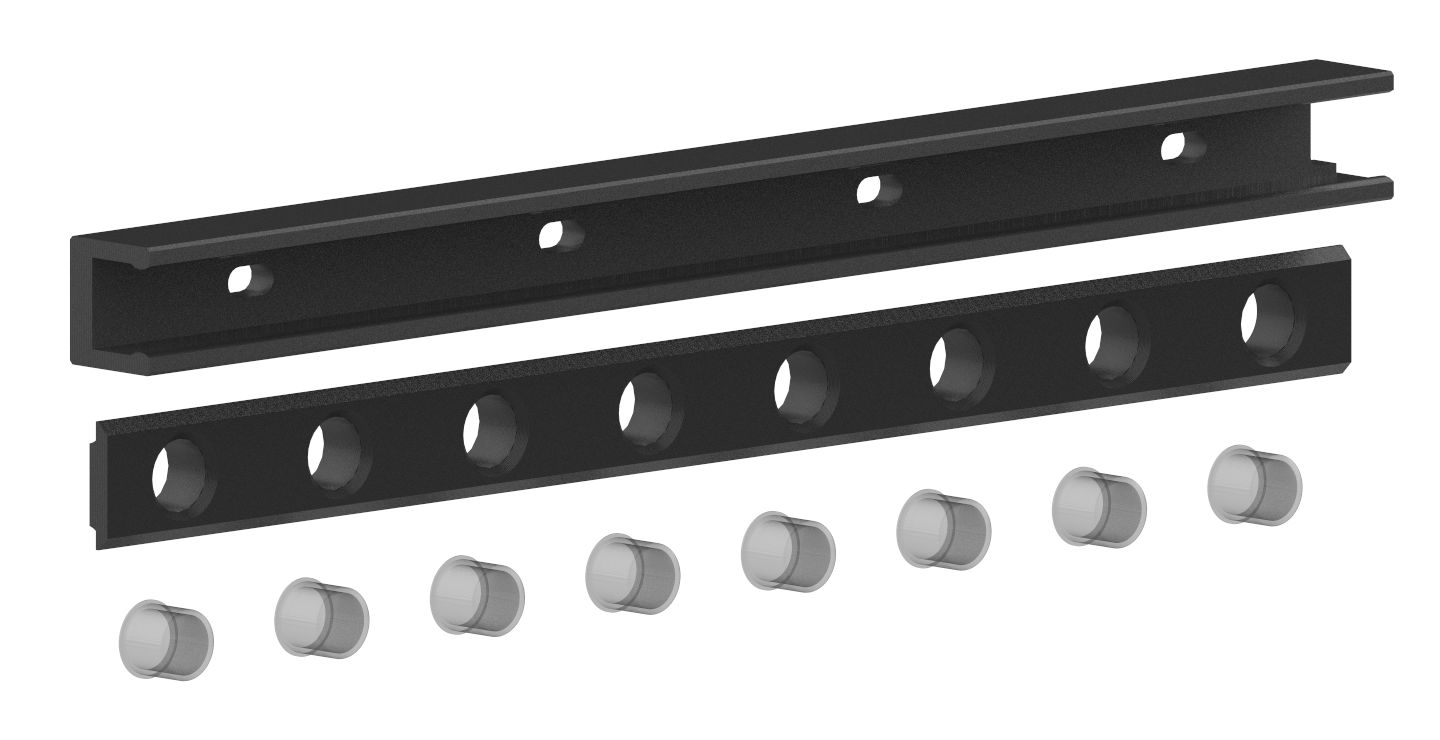

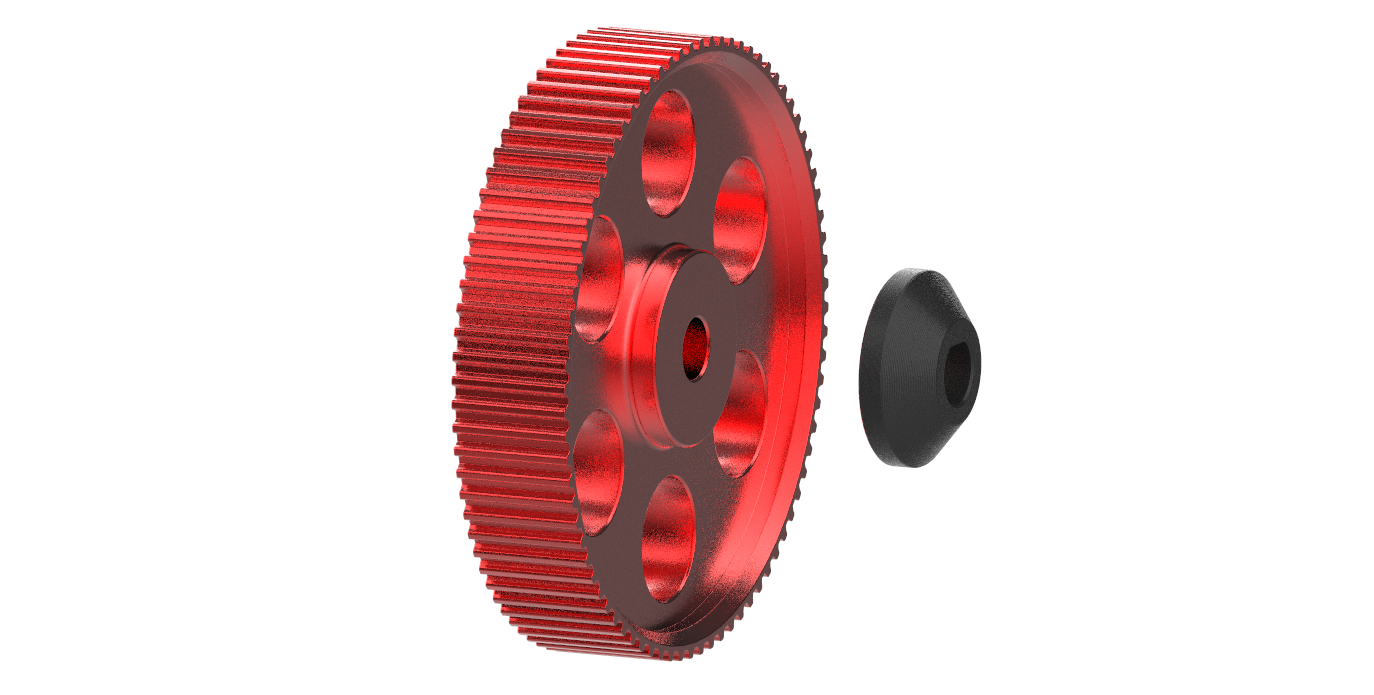

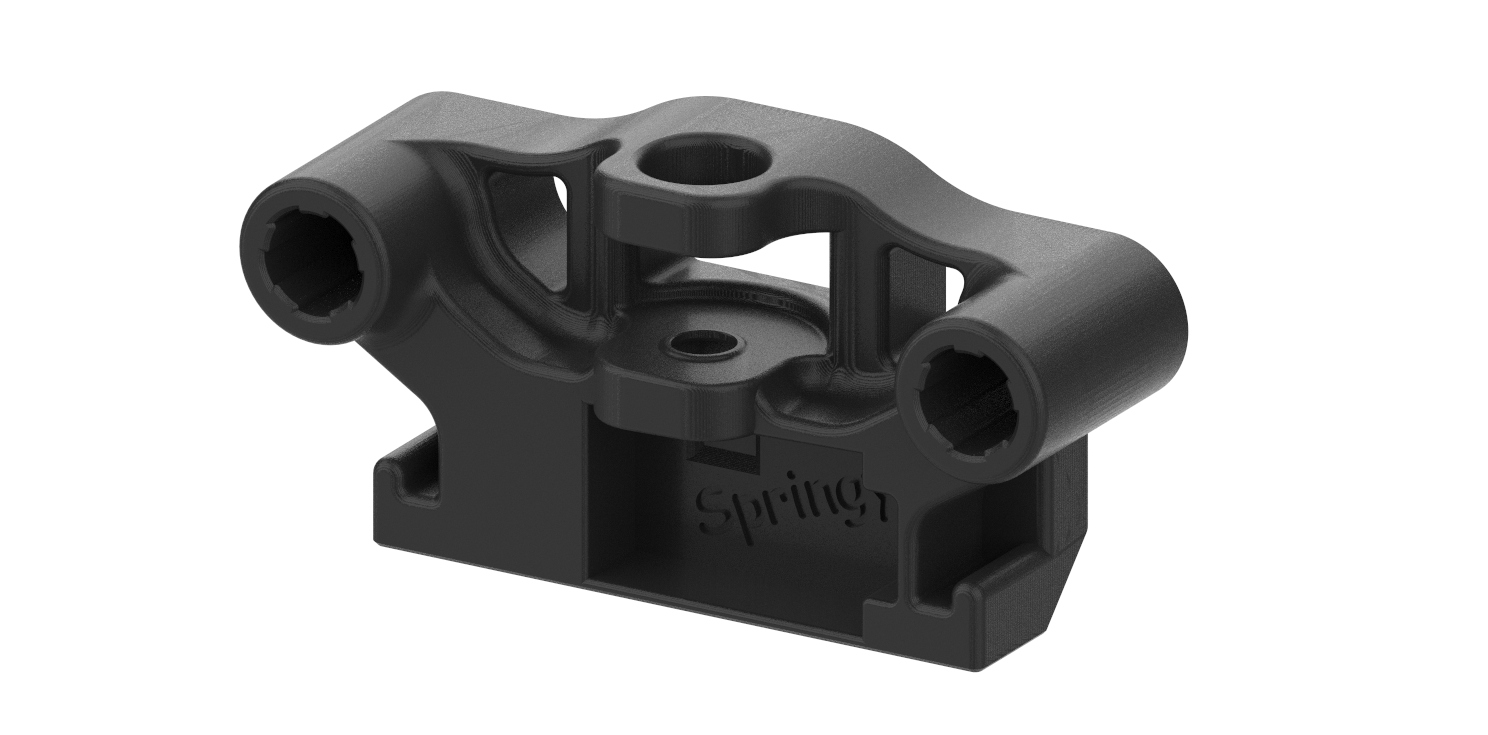

Download here the apron LEDs, 80T metal gear washers, and the Linear Axis Idler Block compatible with 10mm idler for the SIBOOR ERCF V2 kit.

{% embed url="<https://github.com/Lzhikai/ERCF-V2-Accessories/tree/main/Siboor_Customized-kit_stl/ERCF_V2_Stls>" %}

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2F7LCPzY8UBYGMKueEj98q%2Fimage.png?alt=media&#x26;token=6ba5b5fa-3f3e-4ec3-8f96-b2571ffee536" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FyuBl2QFwnXqwSbMGdlox%2Fimage.png?alt=media&#x26;token=4dae89cd-f9dc-47df-904a-37e034e10cd0" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FmKGcJp3wcR4HZ5tBGTD3%2Fimage.png?alt=media&#x26;token=a7dc91e4-36e0-4270-aeb6-2d21e760a501" alt=""><figcaption></figcaption></figure>

### ※REMOTE MCU

{% hint style="warning" %}
If you want to use a remote MCU, meaning not using the EBB MMB board, you may need the STL files with 6-pin microfit connectors. You can download them here.
{% endhint %}

{% file src="<https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2Fp0sz4Trh0qkwH66BoqN1%2FMotor_Arm_NEMA17_GS-6pins.stl?alt=media&token=d3b27a13-25bc-4289-9b28-efe5f9979e31>" %}

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FNXIrzELw5EUeCn6t2YSF%2Fimage.png?alt=media&#x26;token=1ef76e68-e54e-41cd-bcd6-1d5ecd8a56ce" alt=""><figcaption></figcaption></figure>

### ※Encoder\_with\_Status\_LED

{% embed url="<https://github.com/Enraged-Rabbit-Community/ERCF_v2/tree/master/_Errata/Encoder_with_Status_LED/V623ZZ_Bearing>" %}

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FWDEx5k5Wsip0KaDSVQ2P%2Fimage.png?alt=media&#x26;token=9603b34b-abf7-4681-9d2d-612b5d608827" alt=""><figcaption></figcaption></figure>

### ※ERCT\_Buffer  Download STL files

{% embed url="<https://github.com/Enraged-Rabbit-Community/ERCF_v2/tree/master/Recommended_Options/ERCT_Buffer/Stls>" %}

{% tabs %}
{% tab title="ERCT\_Buffer" %}
~~<mark style="color:red;">`Axle_4_Double_Thread`</mark>~~

~~<mark style="color:red;">`Axle_5_Double_Thread`</mark>~~

~~<mark style="color:red;">`Axle_6_Double_Thread`</mark>~~

~~<mark style="color:red;">`Axle_7_Double_Thread`</mark>~~

<mark style="color:green;">`Axle_8_Double_Thread`</mark>

~~<mark style="color:red;">`Axle_9_Double_Thread`</mark>~~

~~<mark style="color:red;">`Axle_10_Double_Thread`</mark>~~

~~<mark style="color:red;">`Axle_11_Double_Thread`</mark>~~

~~<mark style="color:red;">`Axle_12_Double_Thread`</mark>~~

<mark style="color:green;">`Axle_Spacer_Standard_xN`</mark>

<mark style="color:green;">`Axle_Spacer_Taller_xN`</mark>

<mark style="color:green;">`Knut_x2`</mark>
{% endtab %}

{% tab title="Buffer\_Wheel" %} <mark style="color:green;">`Buffer_Wheel_xN`</mark>
{% endtab %}

{% tab title="Coupler\_Block" %} <mark style="color:green;">`[a]_LED_Carrier_Apron_xN`</mark>

<mark style="color:green;">`[a]_LED_Carrier_xN`</mark>

<mark style="color:green;">`[c]_Coupler_Block_xN`</mark>
{% endtab %}

{% tab title="Support\_Arm" %}
~~<mark style="color:red;">📁Bunny Logo Outline (easier to print)</mark>~~

<mark style="color:green;">`[a]_BTT_MMB_Box_Lid`</mark>

<mark style="color:green;">`[a]_BTT_MMB_Support_Arm_Endcap`</mark>

~~<mark style="color:red;">`[a]_Support_Arm_Endcap_No_Electronic_Box`</mark>~~

<mark style="color:green;">`[a]_Support_Arm_Mount_xN`</mark>

<mark style="color:green;">`[a]_Support_Arm_xN`</mark>
{% endtab %}

{% tab title="Tools" %}
~~<mark style="color:red;">`LED_Soldering_Jig_24mm`</mark>~~
{% endtab %}
{% endtabs %}

### ※ERF  Download STL file

{% embed url="<https://github.com/Enraged-Rabbit-Community/ERCF_v2/tree/master/Recommended_Options/ERF_Filament_Cutter>" %}

The following printing guide is based on the SIBOOR VORON 2.4 printer. Other models may require adjustments according to their specific configurations.

{% tabs %}
{% tab title="ERF\_Filament\_Cutter" %}
~~<mark style="color:red;">📁1\_Toolhead\_And\_Entry\_Sensors</mark>~~

<mark style="color:green;">📁2\_Toolhead\_Sensor</mark>

~~<mark style="color:red;">📁3\_Entry\_Sensor</mark>~~

~~<mark style="color:red;">📁4\_No\_Sensors</mark>~~

~~<mark style="color:red;">📁Cutting\_Arm\_More\_Travel\_Option</mark>~~

<mark style="color:green;">📁Hotends</mark> (Print only the files within the **Dragon** folder.)

<mark style="color:green;">`[a]_SB_Cutting_Arm`</mark>

<mark style="color:green;">`[a]_SB_Knife_Holder`</mark>

<mark style="color:green;">`[a]_SB_Latch_ECAS`</mark>

<mark style="color:green;">`Depressor`</mark>

<mark style="color:green;">`Depressor_Mount`</mark>

<mark style="color:green;">`SB_Motor_Plate`</mark>
{% endtab %}
{% endtabs %}

{% hint style="info" %}
**How Should I Print the Many Files in This Folder?**

1. **Identify Your Extruder Type**\
   First, confirm whether you are using the original Stealthburner CW2 or the Galileo 2 extruder.
   * Files for the former will have a prefix of **SB**, while the latter will have a prefix of **G2E**.
   * If a file does not include either prefix, it is considered universal.
2. **Select the Correct STL Files**\
   Choose the appropriate STL files from the **Hotends** folder based on the type of hotend you are using.
3. **Do I Need to Print All Files in the 1/2/3/4 Prefix Folders?**

   * **1**: The STL corresponds to the extruder gear entry and exit, both equipped with limit switches.
   * **2**: The STL only has a limit switch installed at the extruder gear entry.
   * **3**: The STL only has a limit switch installed at the extruder gear exit.
   * **4**: The STL has no limit switches installed.

   Since the SIBOOR ERCF V2 can detect whether the filament has reached the extruder gear entry through the encoder, we assume that you only need to print the **3** folder, which corresponds to installing a limit switch at the extruder gear exit.
   {% endhint %}

***
