# V0 Krigami Bed

### ※What is this?

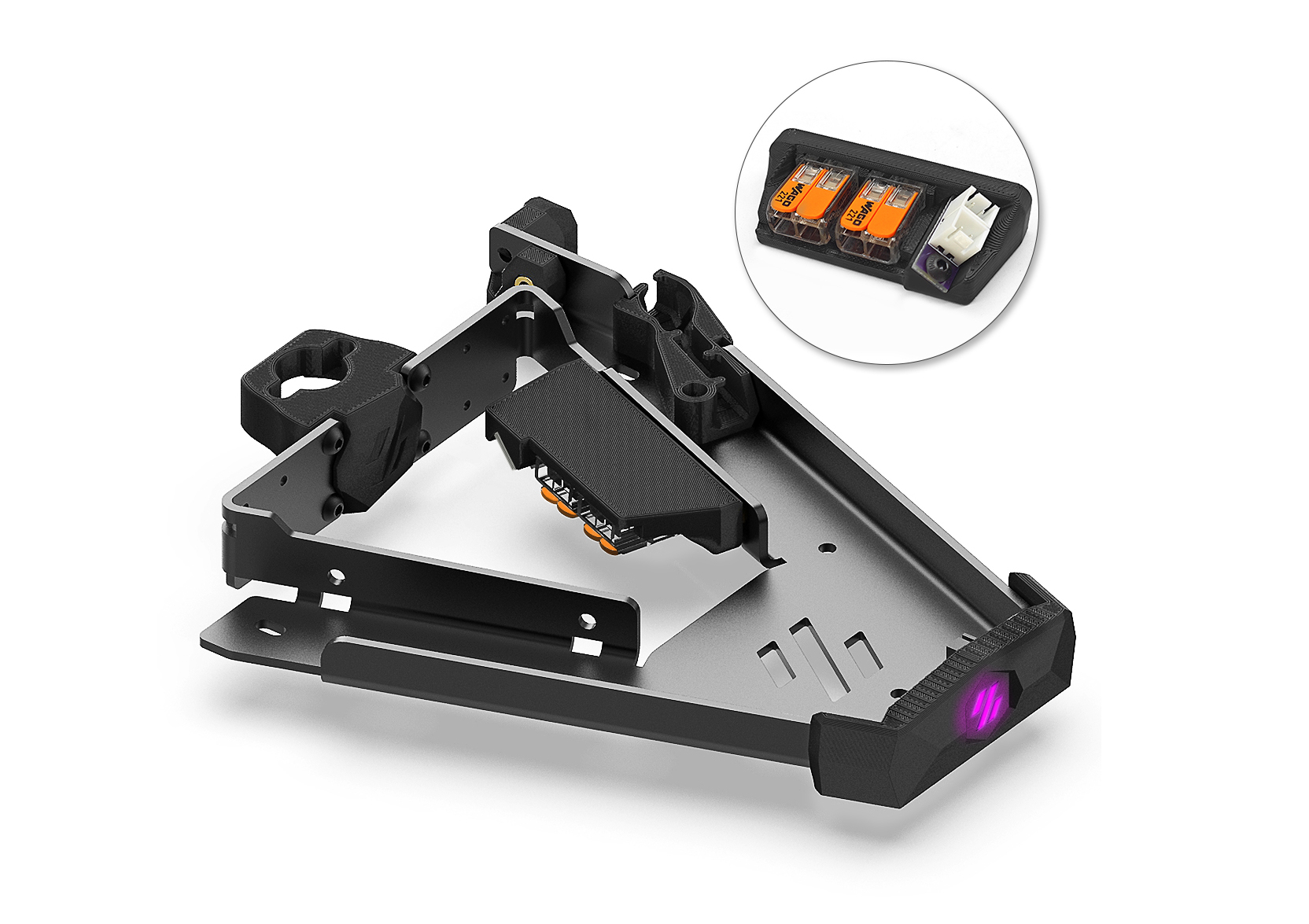

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FSU4hlLJSPR4KU2hso9ij%2F%E7%94%BB%E6%9D%BF%201.jpg?alt=media&#x26;token=07ac5683-c4ca-4f77-8bb6-b60082800fca" alt=""><figcaption></figcaption></figure>

A laser cut and bent single piece bed concept, trying to implement a lightweight and stiff bed with full access to the mounting screws.

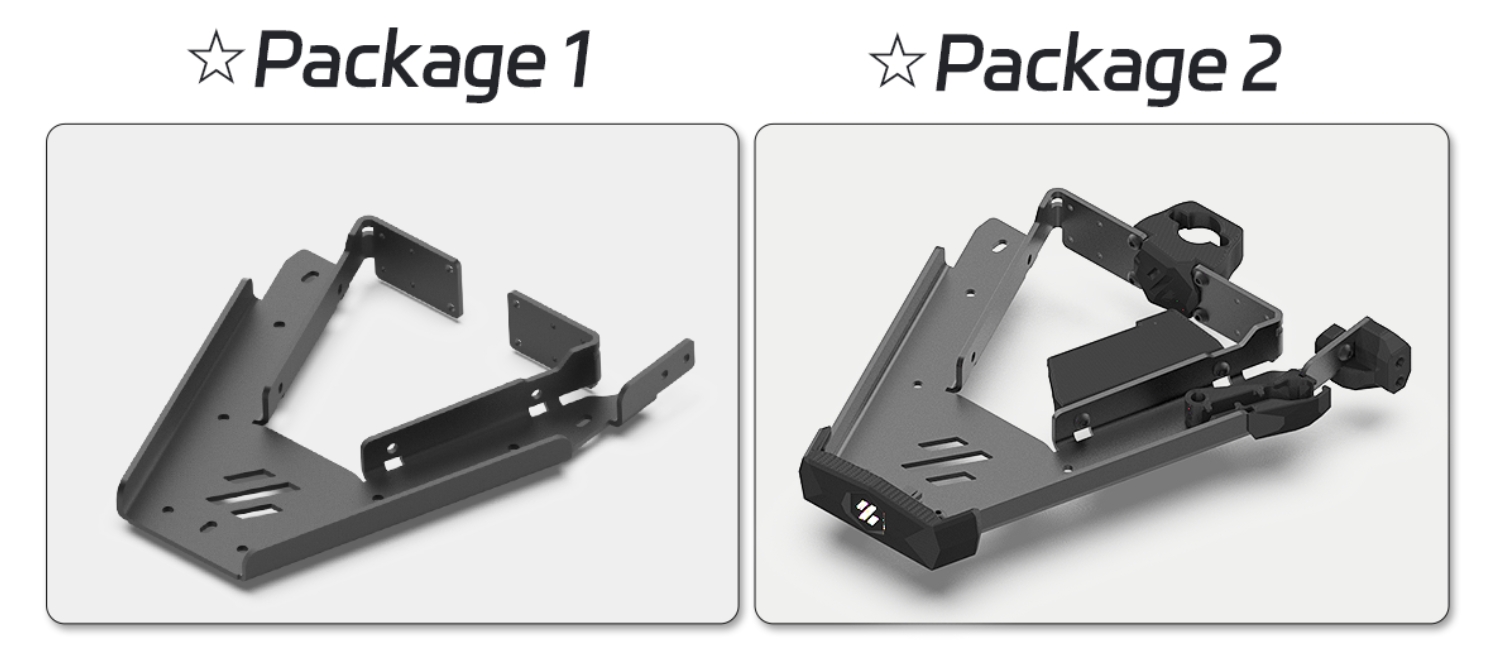

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FBTcSHocgXOoGTtdUFiyW%2F%E5%BE%AE%E4%BF%A1%E6%88%AA%E5%9B%BE_20241015095748.png?alt=media&#x26;token=189d3f5a-a686-4c3f-8938-0234528f772d" alt=""><figcaption></figcaption></figure>

<table data-full-width="false"><thead><tr><th>Name</th><th>Qty</th><th>Package 1</th><th>Package 2</th></tr></thead><tbody><tr><td>Kirigami</td><td>1PCS</td><td>√</td><td>√</td></tr><tr><td>ABS Printed parts</td><td>1PCS</td><td>×</td><td>√</td></tr><tr><td>XH2.54 PCB 2P-2P</td><td>1PCS</td><td>×</td><td>√</td></tr><tr><td>WAGO221-412</td><td>2PCS</td><td>×</td><td>√</td></tr><tr><td>Neopixel PCB+wire</td><td>1PCS</td><td>×</td><td>√</td></tr><tr><td>kit screw</td><td>1PCS</td><td>×</td><td>√</td></tr></tbody></table>

### ※STL file download

{% file src="<https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FLxXcmjuTn2SzsozG7HFf%2FSIBOOR%20kirigaml%20STL.rar?alt=media&token=dfae4e1d-5709-4be0-a19a-1af9a5be4bf2>" %}

### ※Installation steps

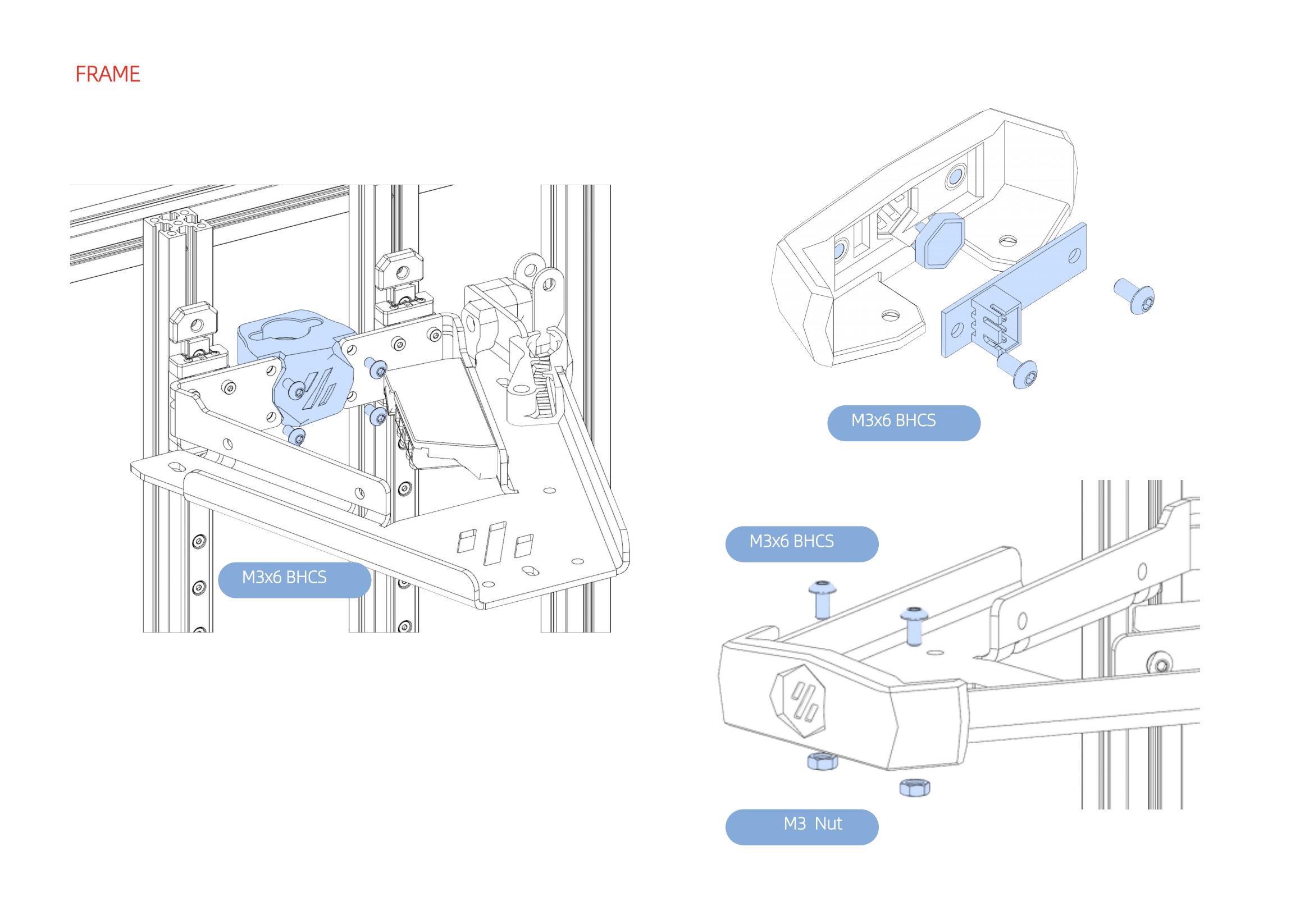

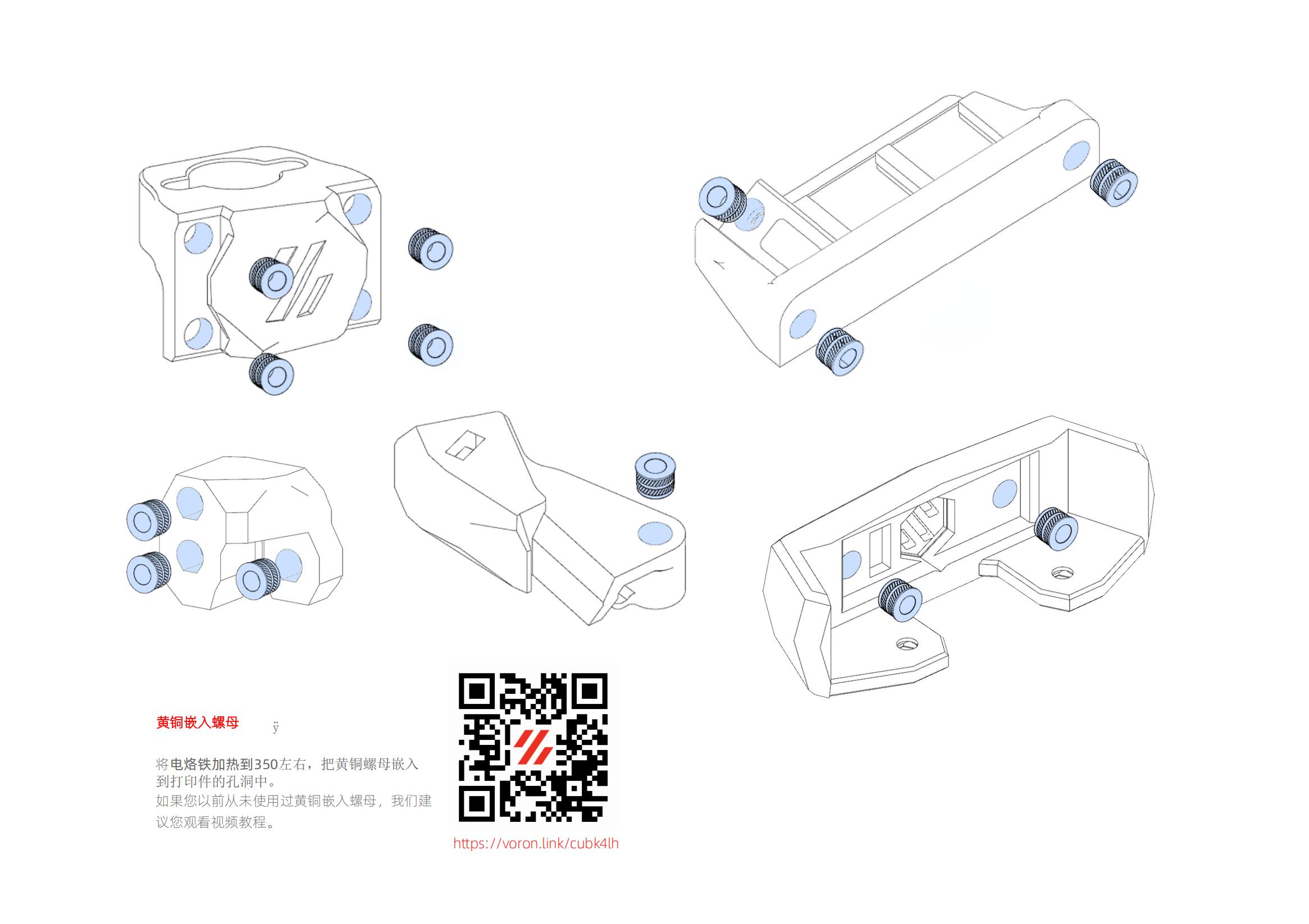

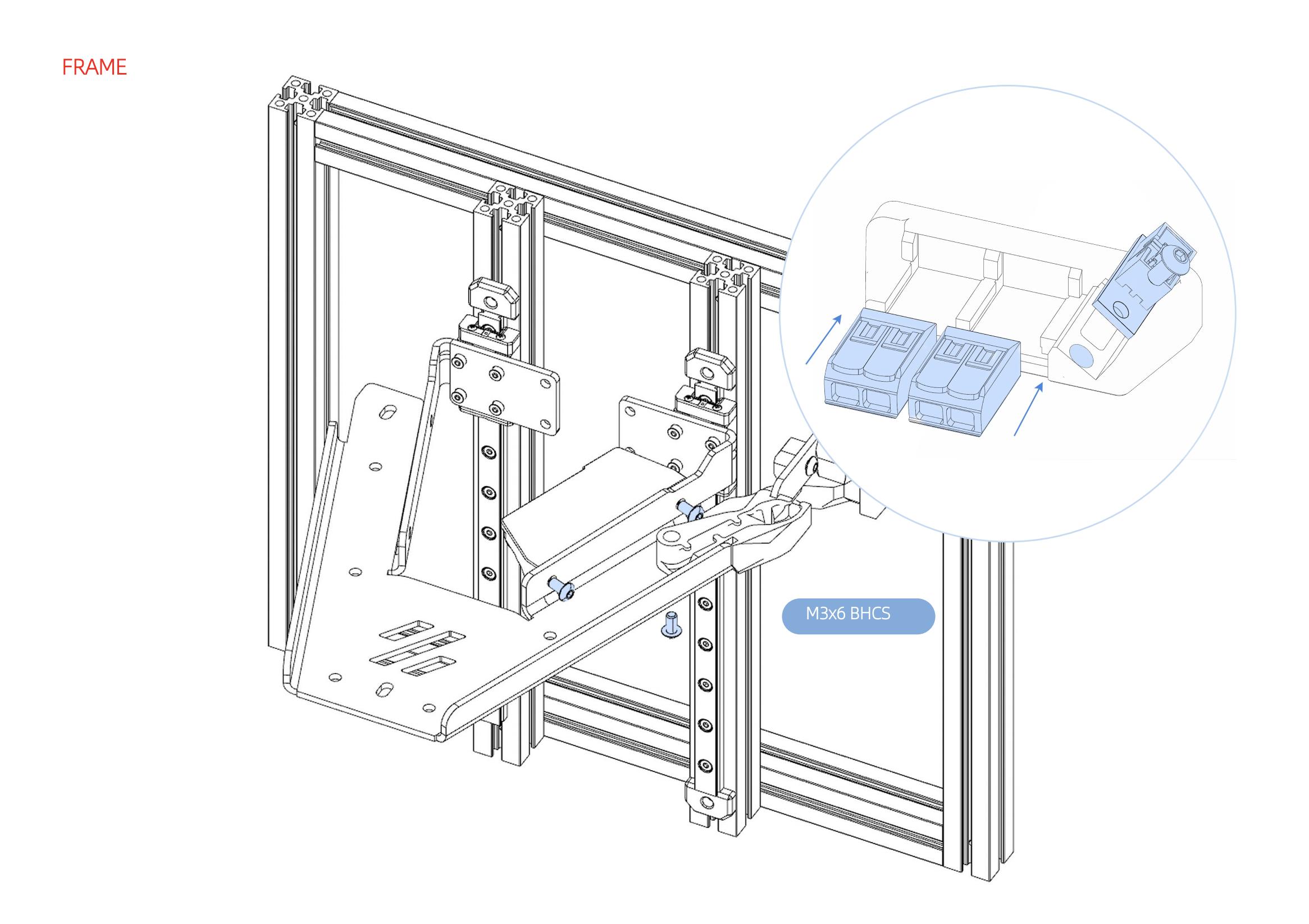

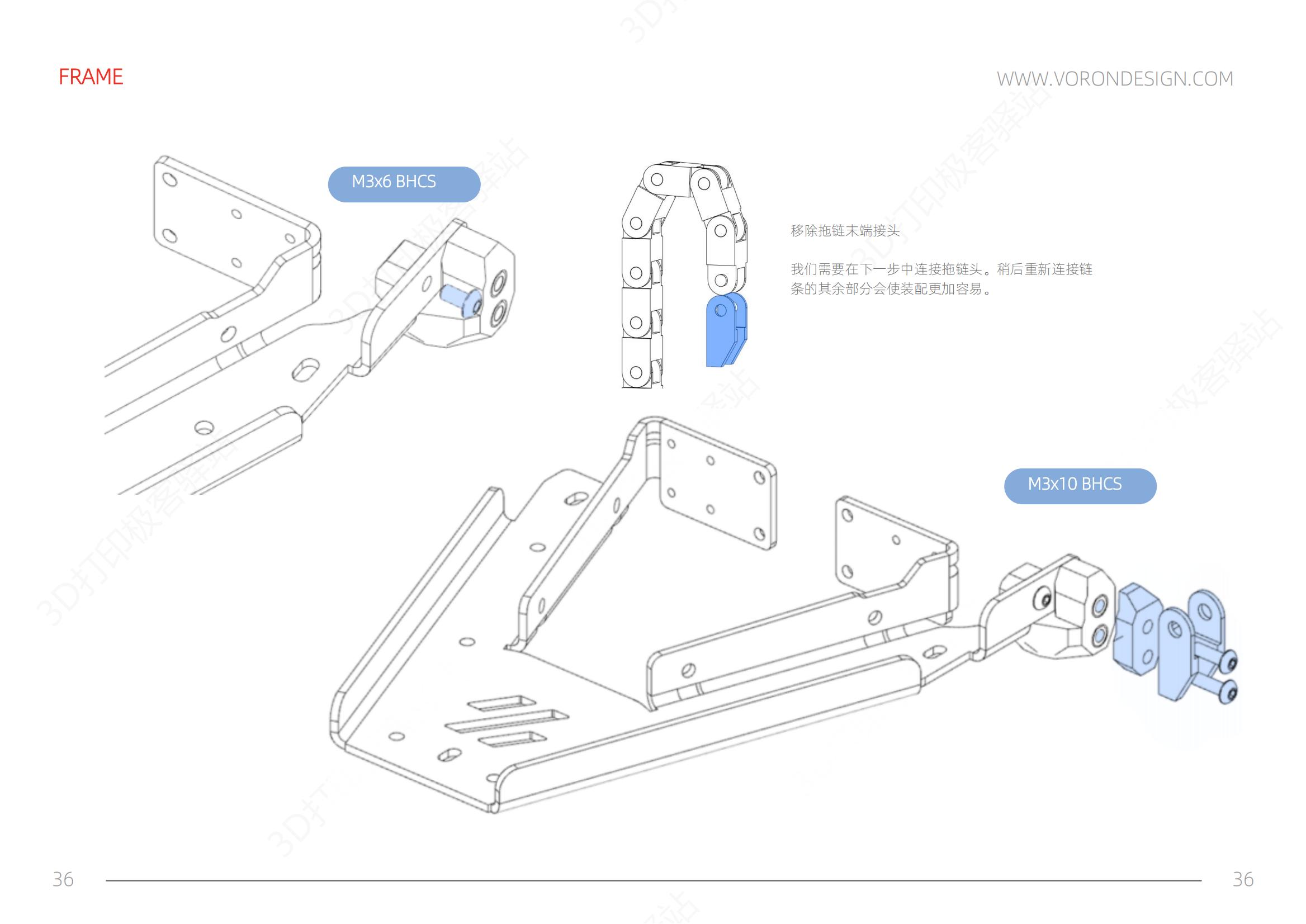

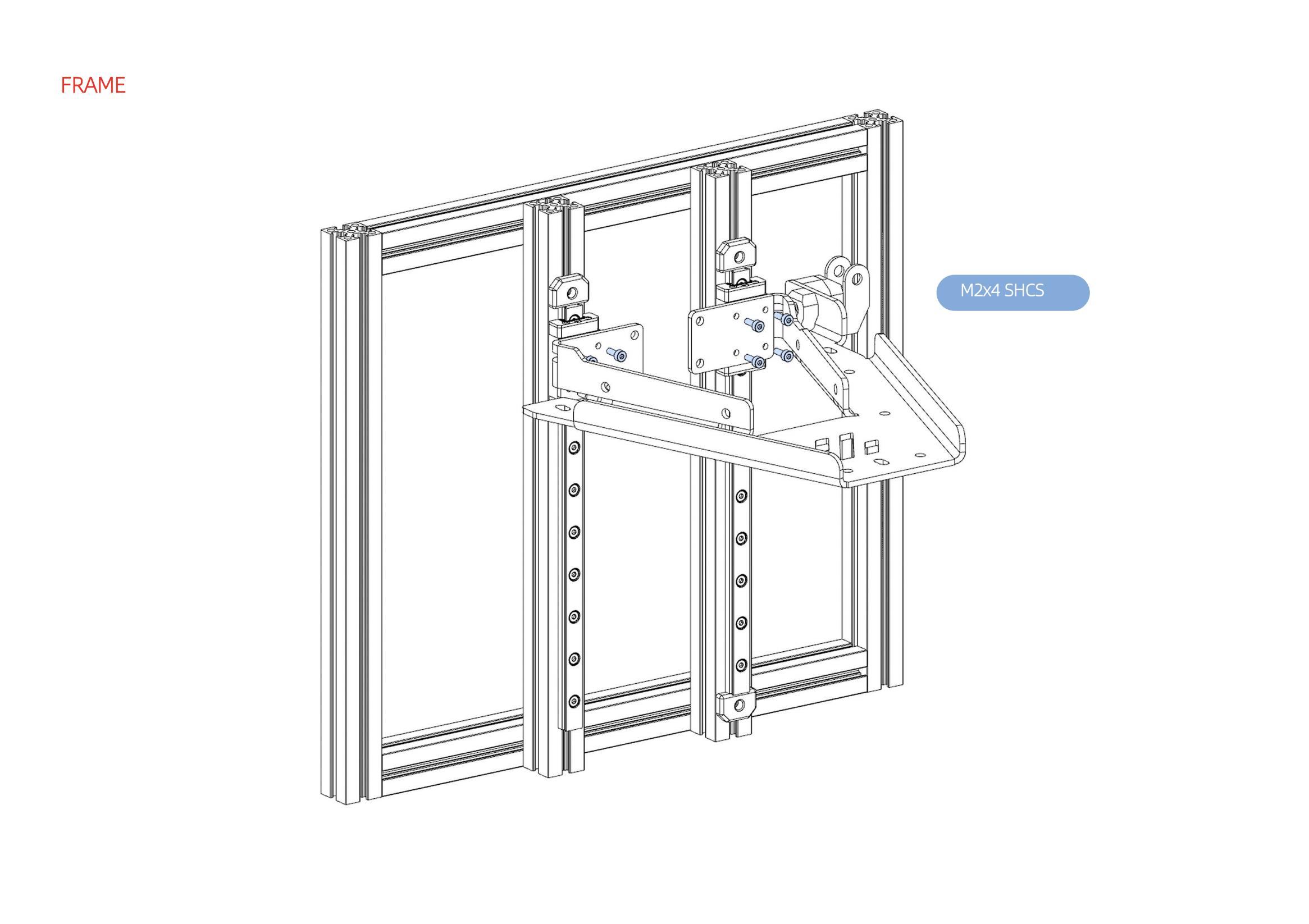

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FTn62PE2X53RXTSVNV8nA%2FSIBOOR%200.2%20AUG%20Supplementary%20Instructions_07.jpg?alt=media&#x26;token=8b0c1b3d-5fa4-4ca2-a25d-4f37c5a626c1" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FJ5T7J5XX8jiKvdF4kJn8%2FSIBOOR%200.2%20AUG%20Supplementary%20Instructions_08.jpg?alt=media&#x26;token=f2a9a2eb-1cdc-404f-8ca7-dcfd918d318d" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2F2lpzbLQjOEsP0IFT9Q8y%2FSIBOOR%200.2%20AUG%20Supplementary%20Instructions_09.jpg?alt=media&#x26;token=fc4e405d-0517-41b5-a036-624f5766a9fc" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FwvWwDN7GcvapXGdkMXCb%2FSIBOOR%200.2%20AUG%20Supplementary%20Instructions_10.jpg?alt=media&#x26;token=477c21c3-5f85-4c1a-ae84-b3e8250febee" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2Fb2D5vZxvz96FcnYWfKJB%2FSIBOOR%200.2%20AUG%20Supplementary%20Instructions_11.jpg?alt=media&#x26;token=bfcf693d-ac29-4f0c-8e3f-f847a0a69244" alt=""><figcaption></figcaption></figure>

### ※RGB lights for kirigaml.

{% hint style="warning" %}
**Ensure correct polarity when wiring. Applying voltage higher than 5V or incorrect wiring may damage the RGB LED board.**

* Red: 5V
* Black: Ground
* Blue: Signal
  {% endhint %}

The klipper-led\_effect plugin is required.

Installation is as follows: Use an SSH connection to enter the command

```ini
cd ~
git clone https://github.com/julianschill/klipper-led_effect.git
cd klipper-led_effect
./install-led_effect.sh
```

You need to add the configuration of the light effects inside the `printer.cfg` file.

```ini
[neopixel neopixel]
pin:XXX                            # Motherboard RGB Pin Definition
chain_count:8                      # Number of lamp beads
color_order: GRB                   # colour sequence
initial_RED: 0.2                   # Red. Maximum 1.
initial_GREEN: 0.2                 # Greener. Maximum 1.
initial_BLUE: 0.2                  # Blue. Maximum 1.

[led_effect panel_idle]
autostart: true                    #Automatic operation
frame_rate: 10                     #Refresh rate
leds:
   neopixel:neopixel               #Called RGBs
layers:
    comet  1 1 top (.5,0,.5),(.1,.1,0),(0,.5,.5)
```

Design Idea Sources：

{% embed url="<https://github.com/christophmuellerorg/voron_0_kirigami_bed>" %}

{% embed url="<https://github.com/julianschill/klipper-led_effect/tree/master>" %}

{% embed url="<https://github.com/VoronDesign/VoronUsers/tree/master/printer_mods/VinnyCordeiro/RGB_LED_grid_for_SB>" %}

***
