# Assembly manual

***

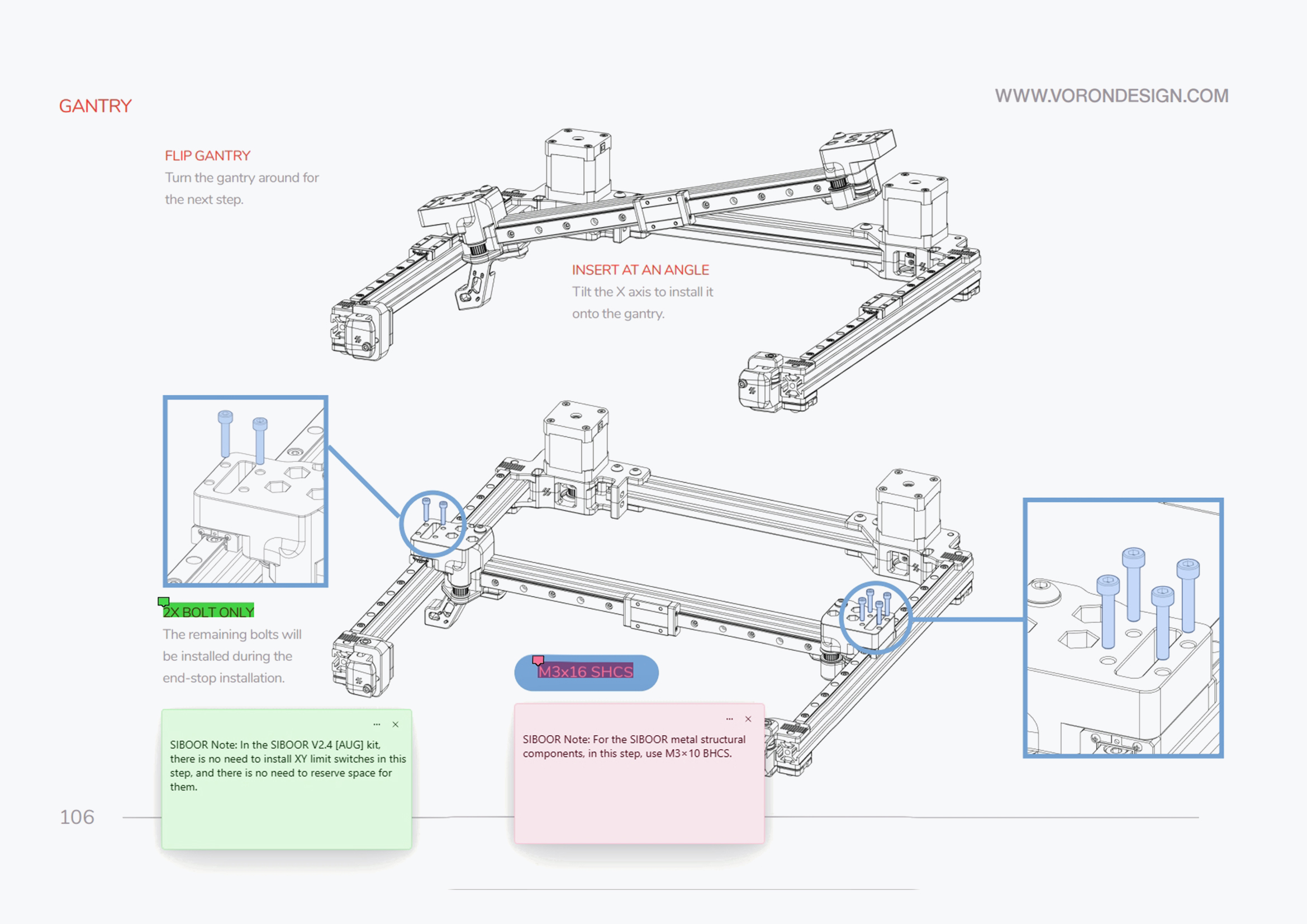

* Pay close attention to manual comments. After downloading, open the file using a browser or PDF software to view the annotation content!
* Green-highlighted sections denote variances between SIBOOR V2.4 \[AUG] and VORON's official BOM.
* Red-highlighted sections indicate differences in metal structural components between SIBOOR V2.4 \[AUG] and VORON's official BOM.

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FIFmebvAtxzYKNz4IQdOf%2Fsupplementary%20page%20%20(15).jpg?alt=media&#x26;token=d2e3fcf7-c448-4410-9398-644967ef3050" alt=""><figcaption></figcaption></figure>

### Cartographer  Assembly Tutorial&#x20;

#### Printed version&#x20;

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FlVtQbNQJeWDaLc32x7mX%2Fcartographer(1).jpg?alt=media&#x26;token=a8a8a840-4363-4504-b9cf-7679a1e5d5ed" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FUKyE27GFpXEqTdRd16y8%2Fcartographer(2).jpg?alt=media&#x26;token=49aa6c14-5e1e-4230-95e8-141dfaaf3ad9" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2F0MZ44sdls21yoL2UNGcu%2Fcartographer(3).jpg?alt=media&#x26;token=9f292955-5d61-4165-8c0c-cfe5db0450ca" alt=""><figcaption></figcaption></figure>

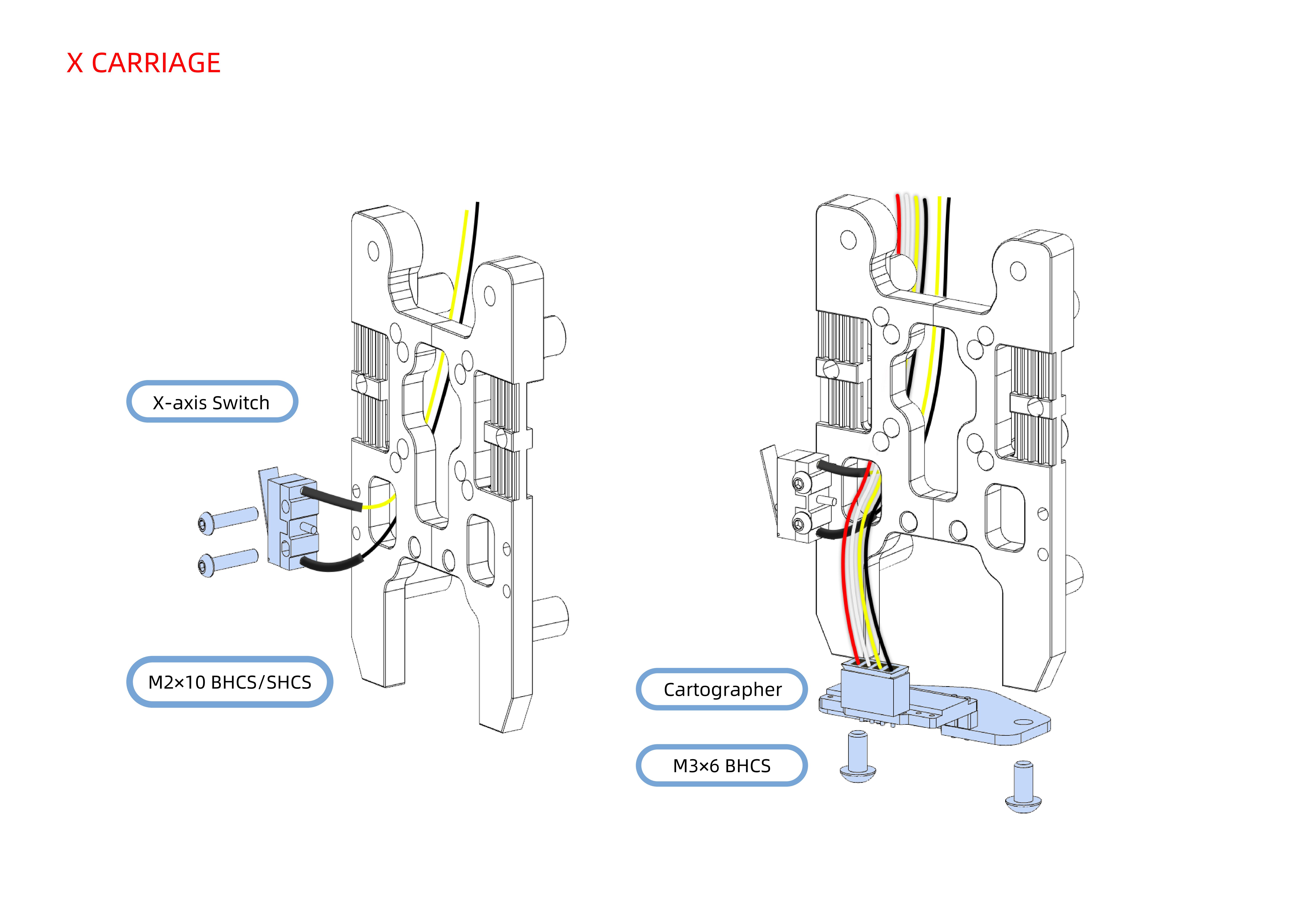

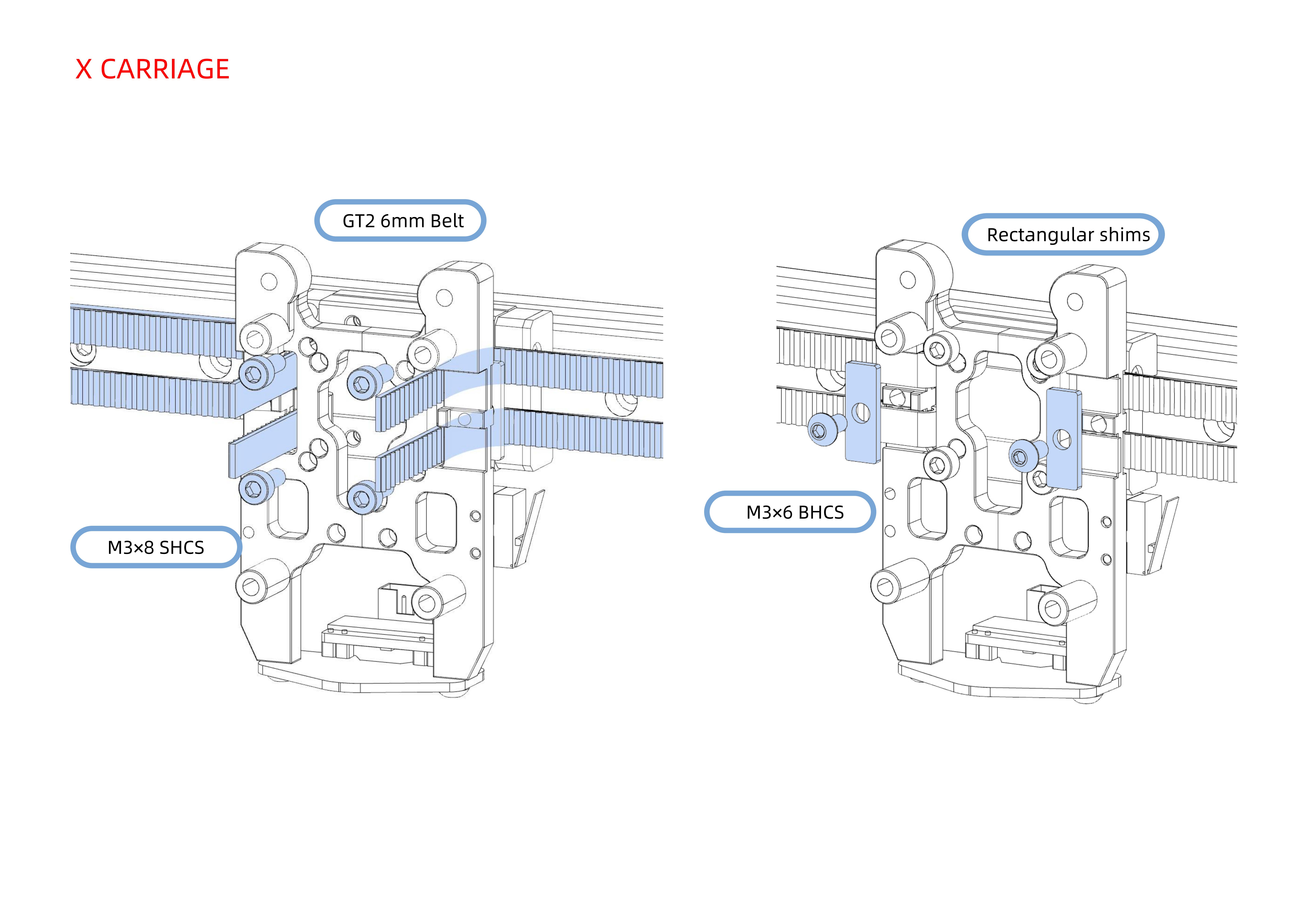

#### CNC version

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FwQyg5VAEG8iuWI7qYqEg%2Fcartographer(4).jpg?alt=media&#x26;token=ed312445-673f-4331-a799-d645fb3e0fe0" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FIV1J9rnkO0ENHFhSWQZO%2Fcartographer(5).jpg?alt=media&#x26;token=e9e31559-5c3c-4933-a74c-feaf9589bf3f" alt=""><figcaption></figcaption></figure>

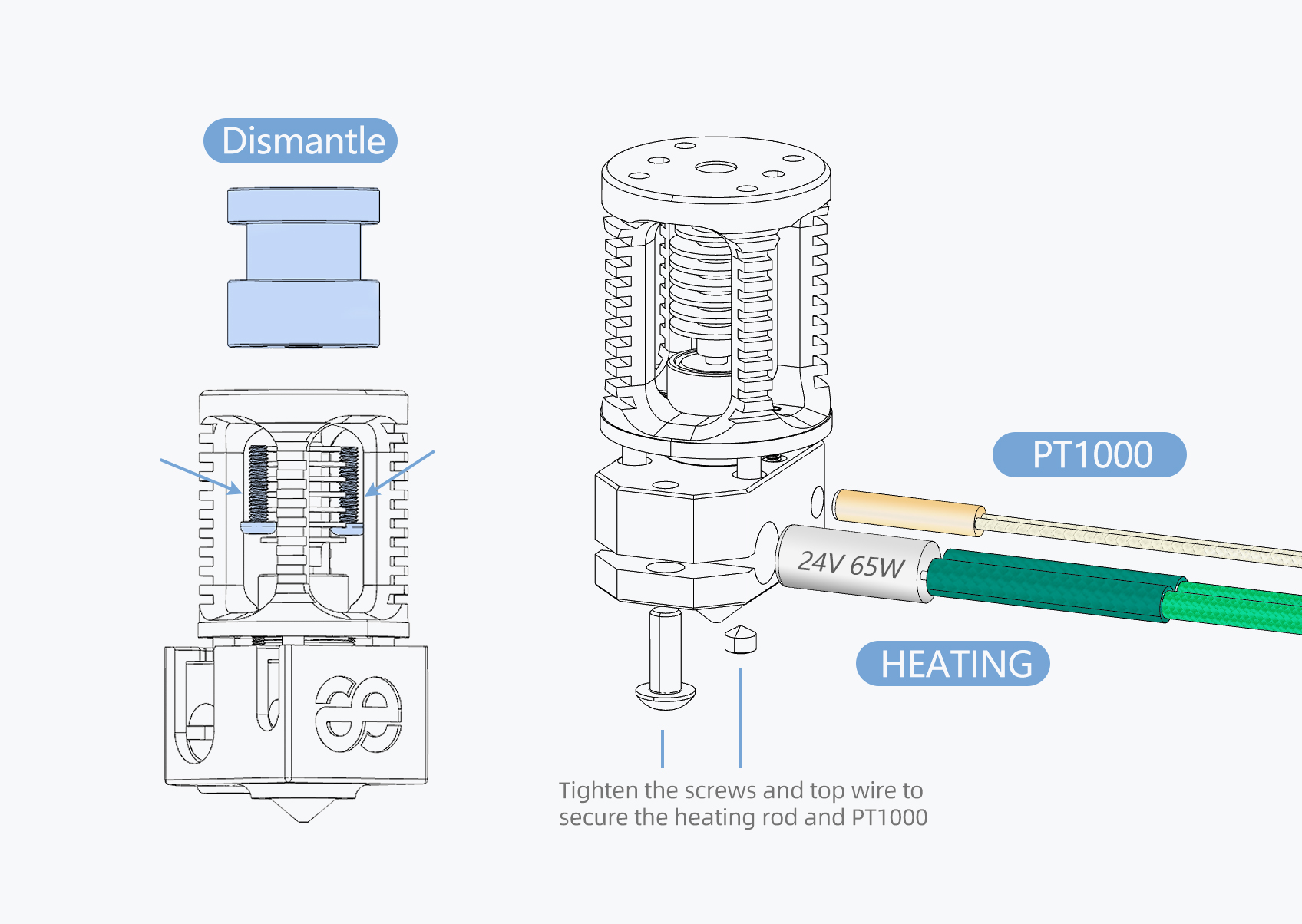

### Stealthburner Assembly Tutorial&#x20;

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FJkWq5atxEBPdTAcZIqFR%2Fimage.png?alt=media&#x26;token=47d0d7fc-8ff1-458c-b06c-72ba6098300b" alt=""><figcaption></figcaption></figure>

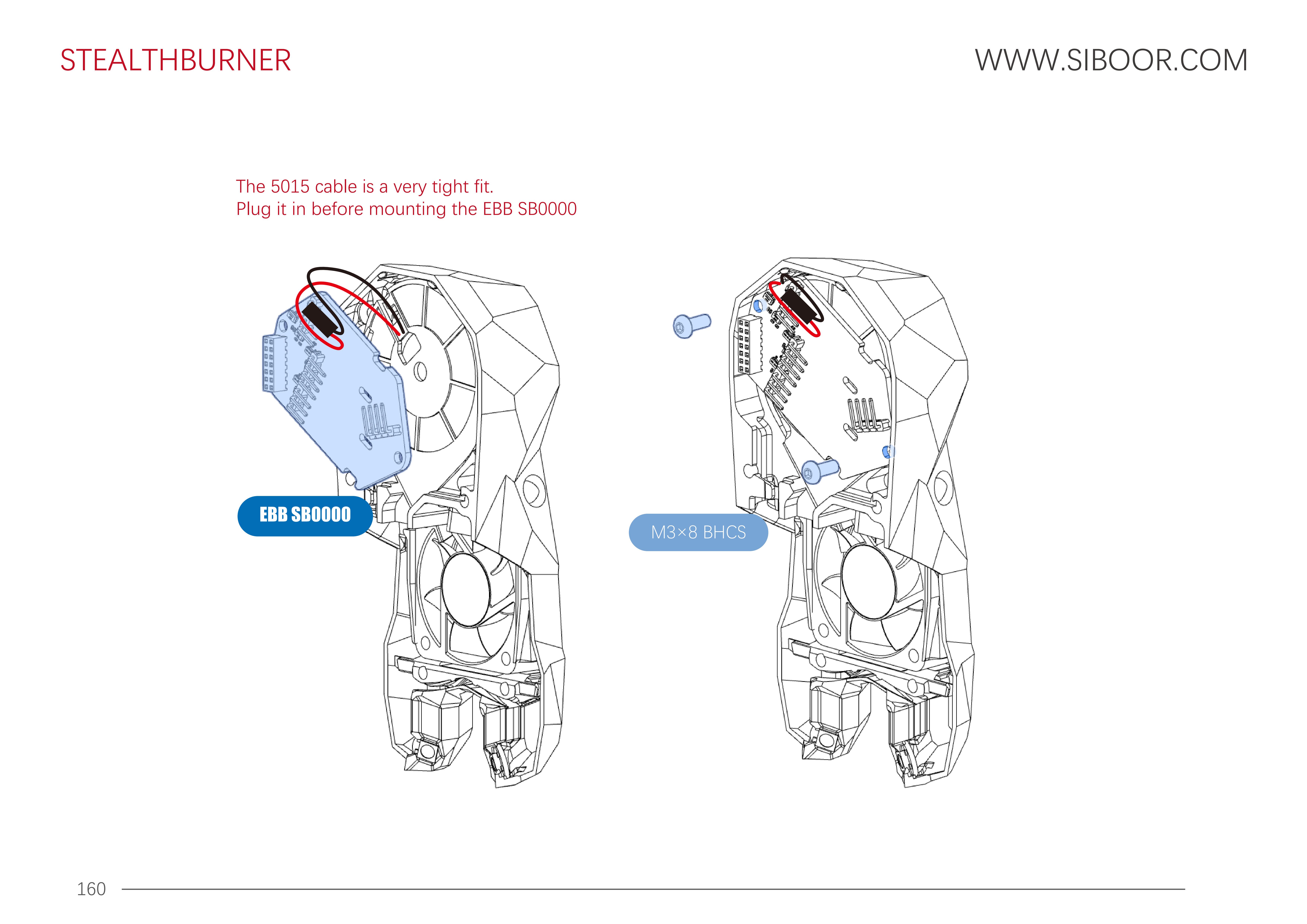

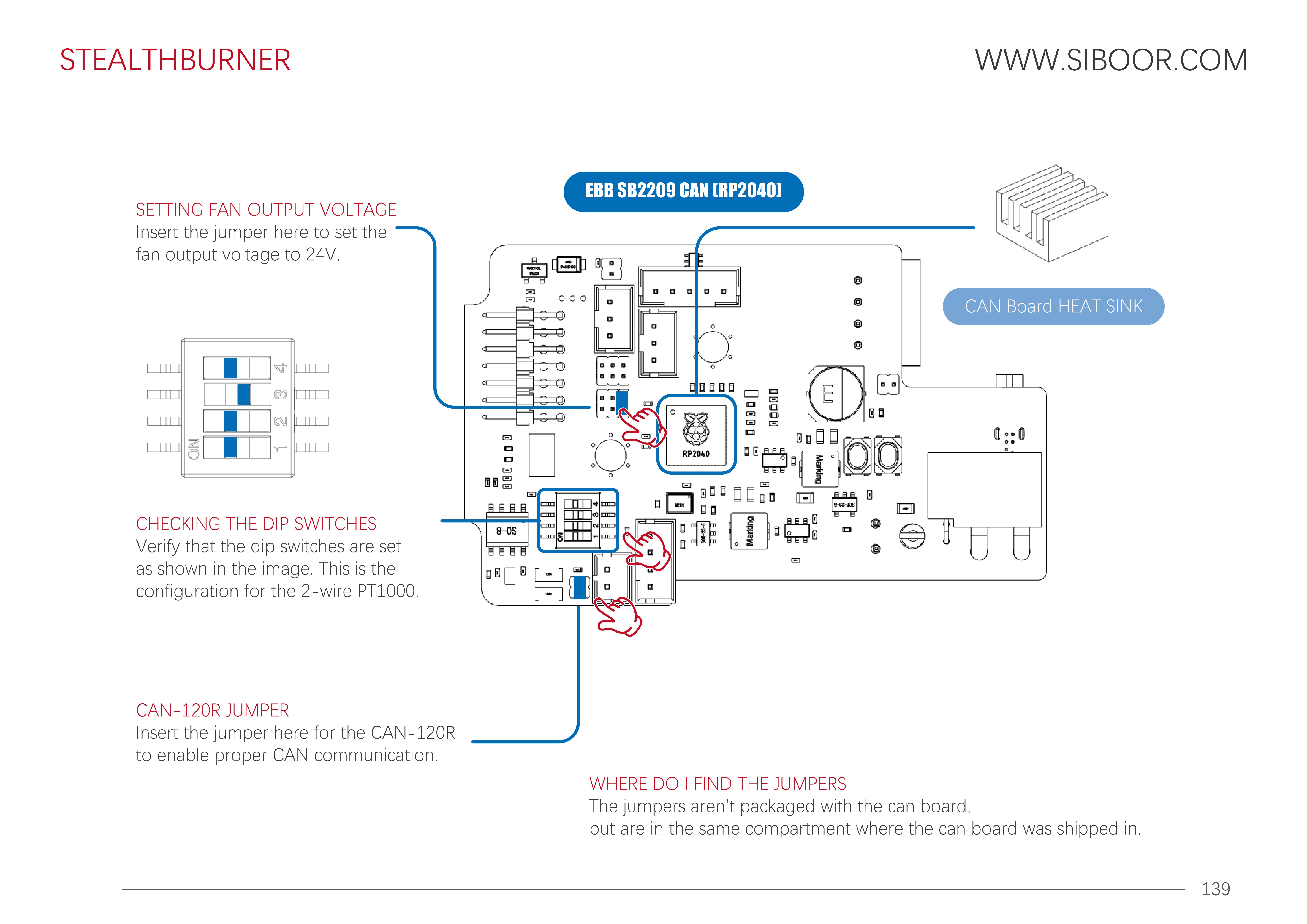

### Stealthburner

SB说明书下载处

安装SB0000

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FcQa0nf1fqIfGUq5iKGdr%2F0807%20Assembly_Manual_SIBOOR_Trident_JUNE_156.jpg?alt=media&#x26;token=7a2f54cf-c3a9-4b44-86ae-7b46e31f6e27" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FFj2dEmdxWCZX3dvxOcNi%2F0807%20Assembly_Manual_SIBOOR_Trident_JUNE_157.jpg?alt=media&#x26;token=cbafef44-c5f6-4baf-9c2e-e69c03b11c6f" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2Fwi8GttYVWaArFyvWlave%2F0807%20Assembly_Manual_SIBOOR_Trident_JUNE_159.jpg?alt=media&#x26;token=094f3ace-83fb-4cb9-bcfa-98605413a038" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FowODpxkQTmbdzLKhTHyy%2F0807%20Assembly_Manual_SIBOOR_Trident_JUNE_160.jpg?alt=media&#x26;token=35a4be9b-74cf-4e95-81b4-7229c3ea6c8e" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FhZapx0HeYw9EXdl2WOKH%2F0807%20Assembly_Manual_SIBOOR_Trident_JUNE_138.jpg?alt=media&#x26;token=6d907d4f-e883-456a-97e0-f22e290dfe53" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2F8fV7fru2IPBg03rn72GQ%2F0807%20Assembly_Manual_SIBOOR_Trident_JUNE_139.jpg?alt=media&#x26;token=c4fdf41a-832b-4318-ae9e-66c8c0898594" alt=""><figcaption></figcaption></figure>

### Y-axis limit&#x20;

### Display assembly

### Wiring and Inspection

### Nevermore Installation
