# Product specs

## Nema Motor

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FdygypeOA9Q1uTAA8N5dH%2FSIBOOR-42STH48-2504%EF%BC%88S45%EF%BC%89.jpg?alt=media&#x26;token=eb76d516-5daa-446d-9762-7e65d268d63a" alt=""><figcaption><p>SIBOOR-42STH48-2404(A45)</p></figcaption></figure>

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FLPGmmIbOzOotRABTrE6N%2F35%E5%9C%86%E5%BD%A2%E7%94%B5%E6%9C%BA%E8%A7%84%E6%A0%BC%E8%A1%A8.jpg?alt=media&#x26;token=42650d6d-5455-428d-b45c-c5b8adbf78c7" alt=""><figcaption><p>SIBOOR-14STH20-1004A</p></figcaption></figure>

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2Fc1i5Mdc9U440KG46umIF%2FSIBOOR-42STH40-1684A-300.jpg?alt=media&#x26;token=d220a073-1c69-4074-87e9-b80449e8614e" alt=""><figcaption></figcaption></figure>

## Heat bed

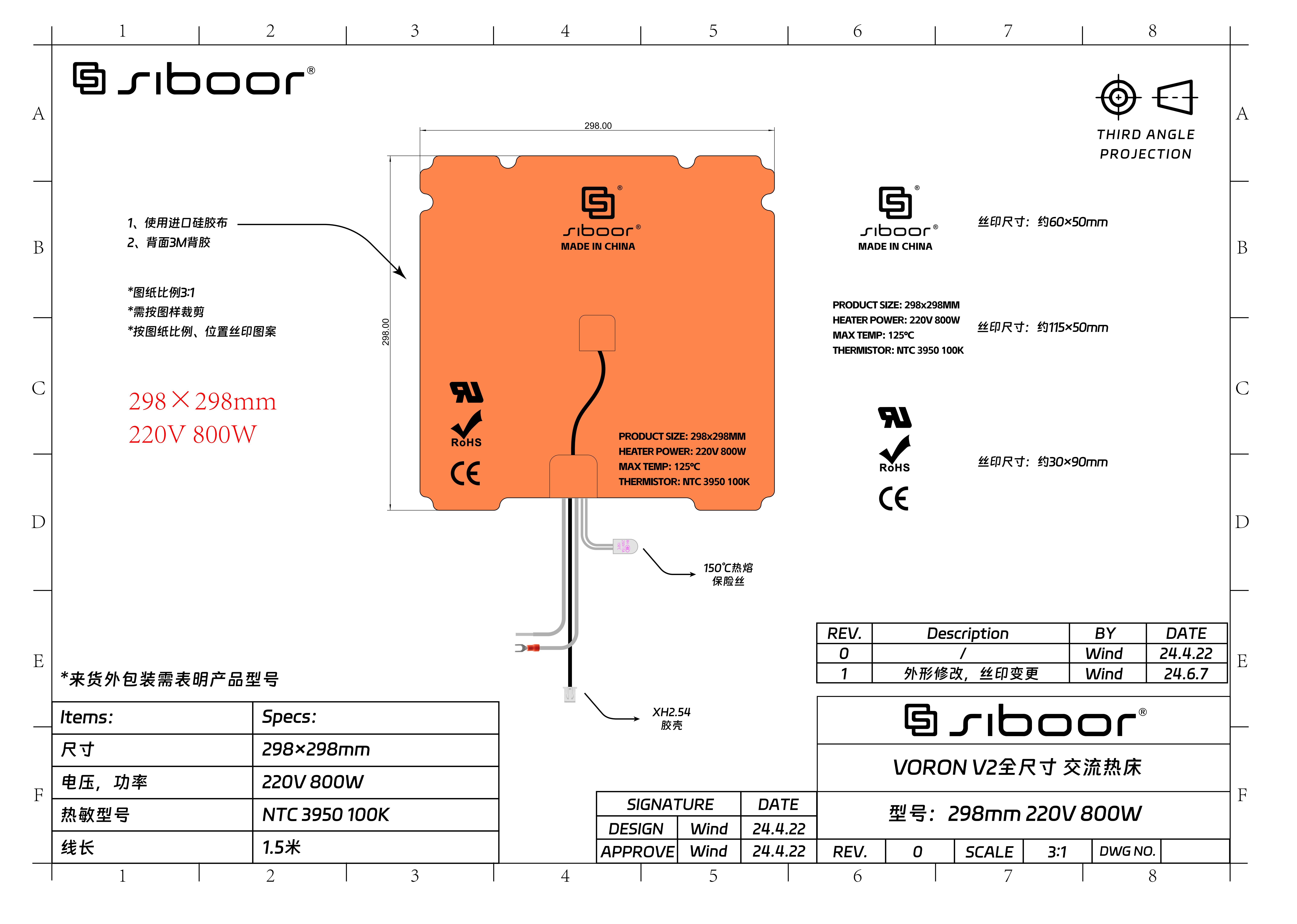

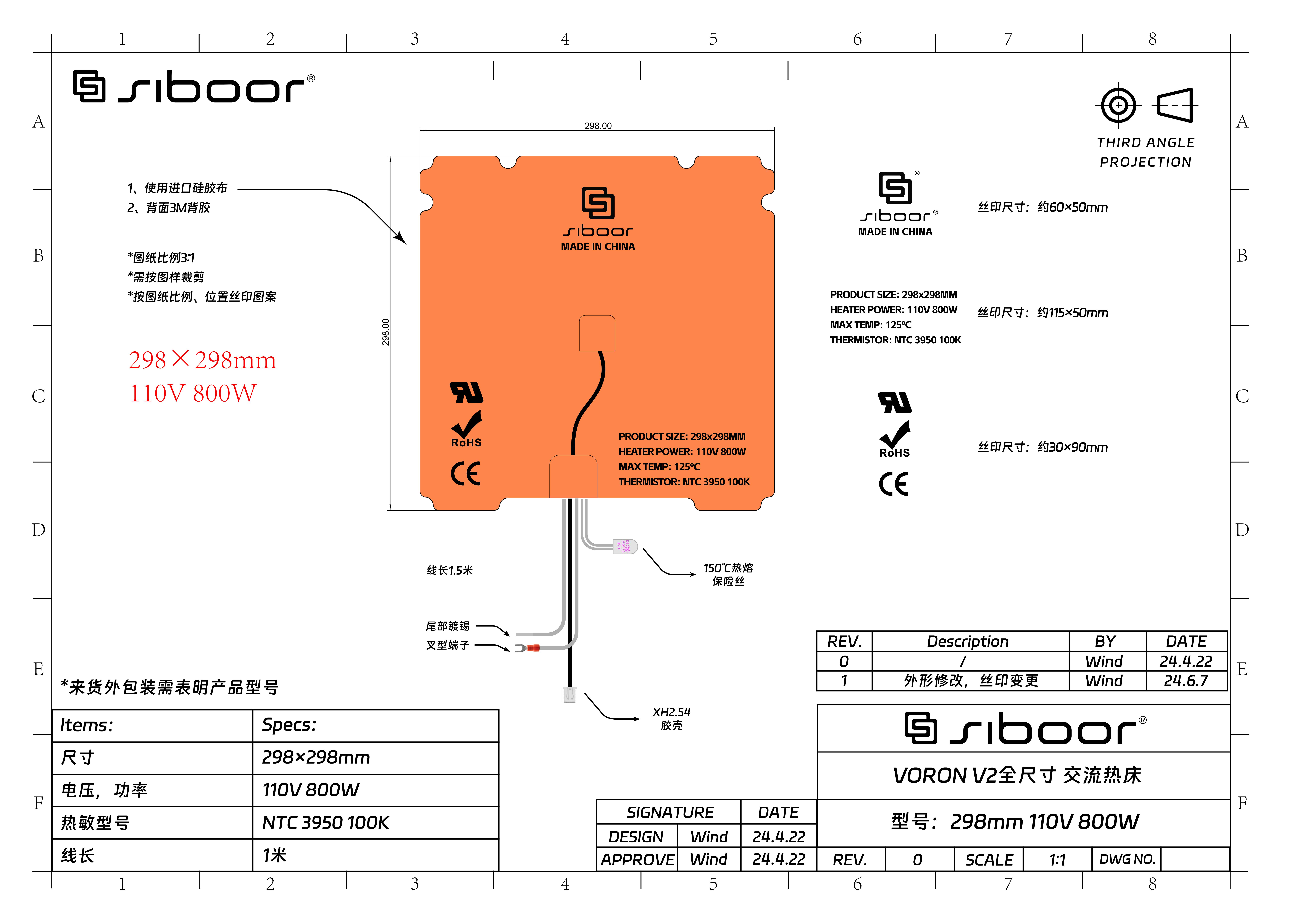

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FXwj7J0kagfXlwEhQonRj%2F0608%20V2%E6%9C%BA%E5%9E%8B%E5%85%A8%E5%B0%BA%E5%AF%B8%20298%C3%97298%20%E7%A1%85%E8%83%B6%E7%83%AD%E5%BA%8A_00.jpg?alt=media&#x26;token=0909c4be-9ac2-417e-a02b-fe21bdfb3085" alt=""><figcaption><p>298×298mm 220V 800W</p></figcaption></figure>

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2F8OIa8xju7wH0jDr3RU9P%2F0608%20V2%E6%9C%BA%E5%9E%8B%E5%85%A8%E5%B0%BA%E5%AF%B8%20298%C3%97298%20%E7%A1%85%E8%83%B6%E7%83%AD%E5%BA%8A_01.jpg?alt=media&#x26;token=424a4609-185f-4e7d-bf38-b0afa26aaca8" alt=""><figcaption></figcaption></figure>

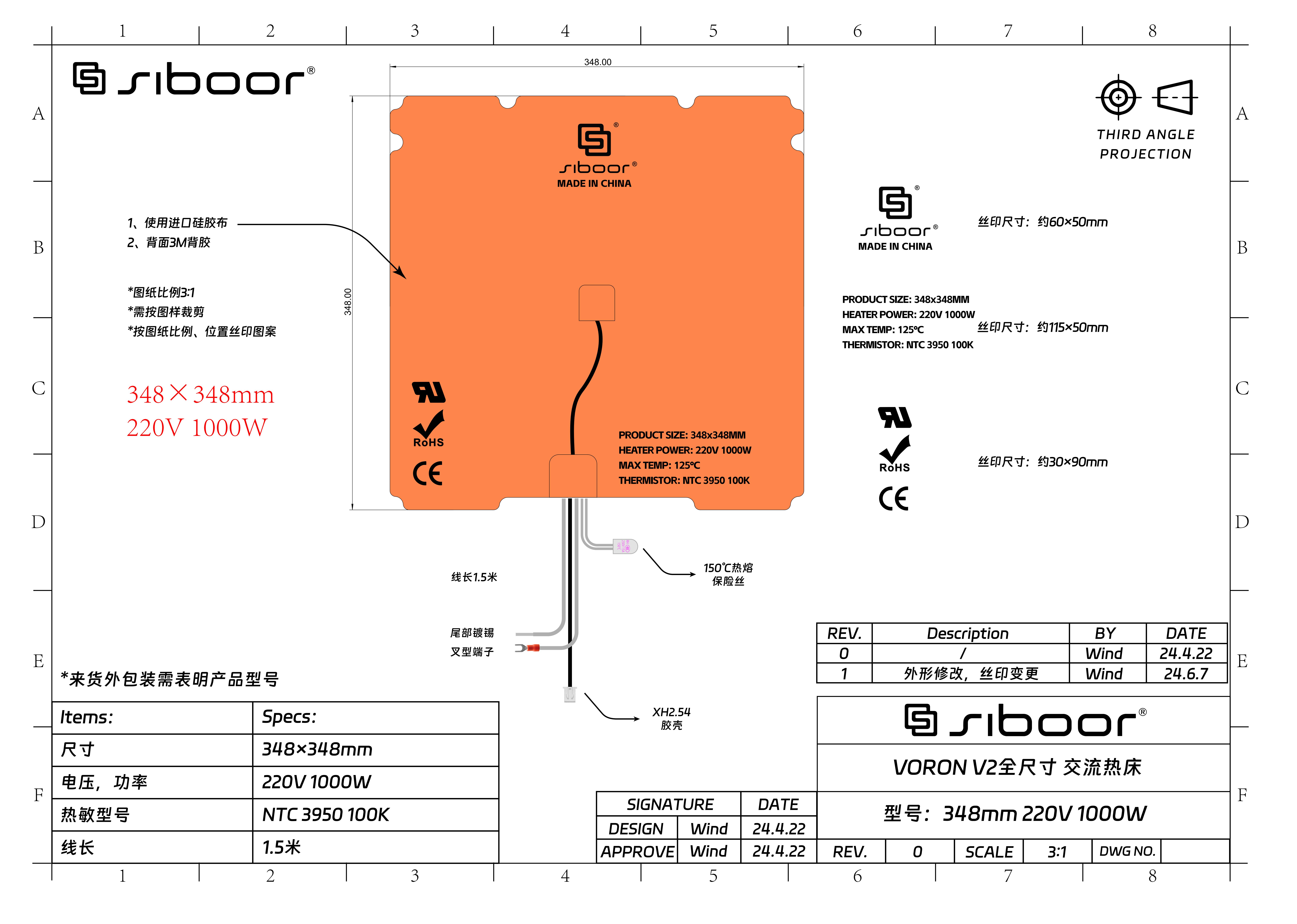

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2FkgMCiDFJp08hucjVb66H%2F0608%20V2%E6%9C%BA%E5%9E%8B%E5%85%A8%E5%B0%BA%E5%AF%B8%20348%C3%97348%20%E7%A1%85%E8%83%B6%E7%83%AD%E5%BA%8A_00.jpg?alt=media&#x26;token=ea2c6fc8-2598-409e-89f4-9d1621b787ae" alt=""><figcaption><p>348×348mm 220V 1000W</p></figcaption></figure>

<figure><img src="https://3855363247-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fcs6QyzgclSdyKWWV05Sb%2Fuploads%2F5SNi2NQf7CzFHLENZPIv%2F0608%20V2%E6%9C%BA%E5%9E%8B%E5%85%A8%E5%B0%BA%E5%AF%B8%20348%C3%97348%20%E7%A1%85%E8%83%B6%E7%83%AD%E5%BA%8A_01.jpg?alt=media&#x26;token=216f5352-d708-436a-a99e-c1deba0cfdcc" alt=""><figcaption><p>348×348mm 110V 1000W</p></figcaption></figure>
